Hella

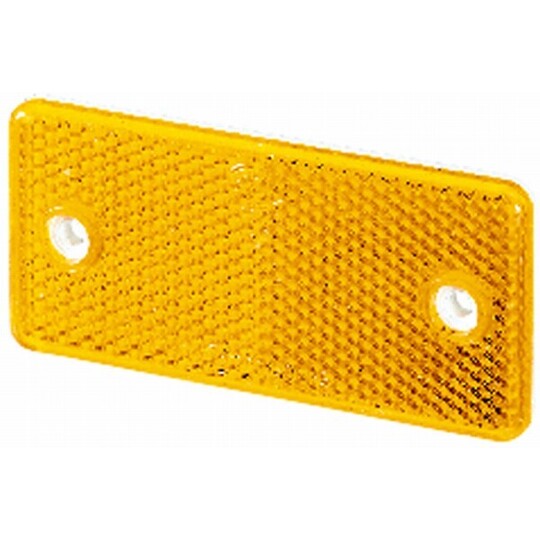

8RA 003 326-011 Reflex Reflector
SKU / part number
Hella 8RA 003 326-011 Reflex Reflector. Part no. 8RA-003-326-011. Check specifications, vehicle fitment and references below.
Specifications
Height
7 | mm
Length
94 | mm
Thickness
7 | mm
Width
44 | mm
Mounting Type
Bolted
Mounting Type
mounting
Fastening Type
for horizontal fastening
Fitting Position
Left
Fitting Position
Right
Light Function
with reflector
Housing Type
Synthetic Material Housing
Lens Colour
yellow (amber)
fulfils ECE standard
R3
Number of light functions
1
Effective reflective surface
29 cm²
Registration Type
ADR/GGVS approved
Registration Type
CCC approved
Shape
rectangular
Supplementary Article/Supplementary Info 2
without fastening material
Trade Numbers
E1 21395
Shipping details
Weight
0.02 Kg
Weight Volumetric
0.1 Kg
Customs Code
851220
Country of Origin
Finland
Cross-Reference Numbers
| AGCO | 519212 |
|---|---|
| AHLMANN | 0094057 |
| ALEXANDER DENNIS | D93RF000005 |
| AUWÄRTER | 1503.082.00, 1503.700.00, 826-RS003 |
| BUCHER | 7237-0510 |
| CATERPILLAR | 116-9621 |
| DAF | 1444658 |
| FIAT | 42046397 |
| FORD | V95CT13380AA |
| HELLA | 003 326-011, 003326011, 8RA 003 326-015, 8RA 003 326-016, 8RA 003 326-017, 8RA 003 326-018, 8RA 003 326-048, E1 21395 |
| HERTH+BUSS ELPARTS | 78 623 038, C0 6264-01 |
| HOBBYCAR | 260015, 260387, 6501660093 |
| HYMER | 938148 |
| HÜFFERMANN | 2-EL0004-010 |
| IVECO | 42024860EZ502780, 42046397 |
| JCB | 332/U8247 |
| JOHN DEERE | 00 17 80, 10 61 97 |
| JOKON | 31.0002.010 |
| KNAUS | 615073, K615073 |
| KOMATSU | 421-06-14430, 4603 153 M1 |
| KRONE | 0942729/0, 505816704, 5816704/0 |
| KÄSSBOHRER | 8-689-032-001 |
| KÖGEL | 79727 |
| LEYLAND DAF | 1444658 |
| LIEBHERR | 6 071 088 08, 6 071 266 01, 6 905 206 |
| MAN | 150370000, N1.01102-5441 |
| MERCEDES-BENZ | 000 482 40 02, 000 826 17 41, 001 544 06 92, 623 565 7, A 000 482 40 02, A 000 623 56 57, A 000 826 17 41, A 001 544 06 92, A 623 565 7 |
| MOTOMETER | 171.105.2 |
| NATO | 9905-12-191-1123 |
| NEOPLAN | 1503.082.00, 1503.700.00, N1.01102-5441 |
| O&K | 1711052, 8011905 |
| PROPLAST | 20 109 001, 26 109 001 |
| SAW | 80.091-021 |
| SCHMITZ CARGOBULL | 1028, 182991 |
| SCHWARZMÜLLER | 12510 |
| STILL | 001780 |
| TITGEMEYER | 679001, 679001.000 |
| ULO | 4651-06, 521 02 70 |
| VAN HOOL | 660744056 |
| VDL | 20500426, 30061185, 660744056 |
| VOLVO | 4864457, 70366376 |
| ZIEGLER | 114425, 408214 |
