Hella

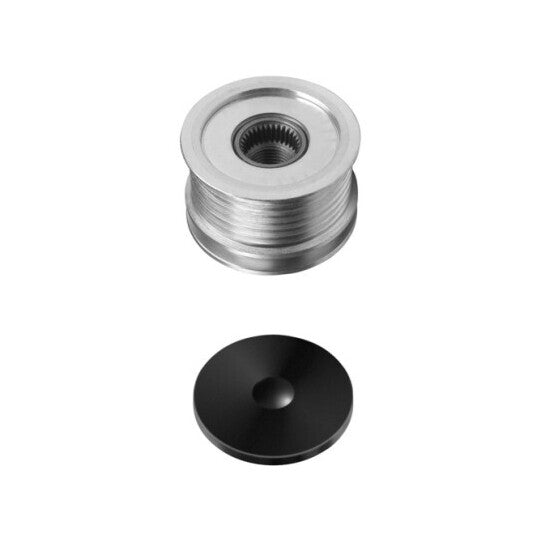

9XU 358 038-031 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-031 Alternator Freewheel Clutch. Part no. 9XU-358-038-031. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
42.8 | mm
Distance from belt pulley to alternator
16 mm
Fitting Depth
7.6 mm
for manufacturer number
F-225644.XX
for manufacturer number
F-228215.XX
Manufacturer Restriction
Valeo
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.497 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 123 320 041, 0 123 320 046, 0 123 510 038, 0 123 510 049, 0 123 510 080, 0 123 510 101, 1 126 601 568, 6 033 GB3 030, 6 033 GB3 031, 6 033 GB3 040, 6 033 GD5 036, F 00M 991 391 |
|---|---|
| BREDA LORETT | CR 3613 |
| CONTINENTAL CTAM | AP9034 |
| DAYCO | ALP2378 |
| FEBI BILSTEIN | 14045, 15165 |
| GATES | OAP7072 |
| HELLA | 358 038-031, 358038031 |
| HUTCHINSON | DB0244 |
| MERCEDES-BENZ | 602 150 00 60, 604 150 00 60, 604 150 03 60, A 602 150 00 60, A 604 150 00 60, A 604 150 03 60 |
| QUINTON HAZELL | 1010093 |
| RUVILLE | 55171 |
| SKF | VKM 03822 |
| SNR | GA751.02 |
| SWAG | 10 91 5165 |
| Schaeffler INA | 535 0013 10, 79202025, F-225644.05, F-225644.2, F-225644.4, F-225644.5, F-225644.6, F-225644.7, F-228215, F-228215.03, F-228215.04, F-228215.1, F-228215.2 |
| TRIPLE FIVE | 230305, 332319, 335180, MBI-28550, PBT8633, Y2034 |
| VALEO | 2547128, 584983, 588044, 593495, A13VI174, A13VI175, A13VI199, A13VI222 |
