Hella

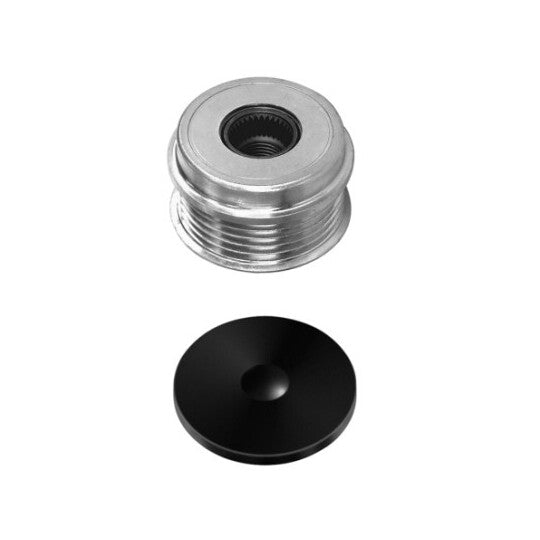

9XU 358 038-061 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-061 Alternator Freewheel Clutch. Part no. 9XU-358-038-061. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
36.5 | mm
Distance from belt pulley to alternator
6 mm
Fitting Depth
11.1 mm
for manufacturer number
F-552699.XX
for manufacturer number
F-225653.10/.11
for manufacturer number
F-225653.6/.7
Manufacturer Restriction
Valeo
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
5
Shipping details
Weight
0.519 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| AUDI | 022 903 119 B, 022 903 119 D, 028 903 119 AB, 028 903 119 AC, 038 903 119 J, 038 903 119 M |
|---|---|
| BOSCH | 0 124 325 018, 0 124 325 049, 0 124 515 026, 0 124 515 083, 0 124 525 010, 0 124 525 089, 0 124 615 021, F 00M 147 724, F 00M 991 043, F 00M 991 045, F 00M 991 378 |
| BREDA LORETT | CR 3143 |
| CONTINENTAL CTAM | AP9002 |
| DAYCO | ALP2329 |
| FEBI BILSTEIN | 15254 |
| FORD | 95VW-10300-ABA |
| GATES | OAP7033 |
| GEBE | 335411 |
| HELLA | 358 038-061, 358038061 |
| HK | G258 |
| HUTCHINSON | DB0246 |
| IPD | 12-0258 |
| LUCAS ELECTRICAL | LOPA0011 |
| QUINTON HAZELL | 1010062 |
| RUVILLE | 55451 |
| SKF | VKM 03107 |
| SKODA | 022 903 119 B, 022 903 119 D, 028 903 119 AB, 028 903 119 AC, 038 903 119 J, 038 903 119 M |
| SNR | GA754.03 |
| SWAG | 30 14 0006 |
| Schaeffler INA | 535 0005 10, 79202035, F-225653.10, F-225653.11, F-225653.6, F-225653.7, F-552699, F-552699.01, F-552699.02, F-552699.03 |
| TRIPLE FIVE | 230302, 3.3541.0, 332295, MBI-28350, PBT8622, TA20510, Y2032 |
| VALEO | 2542234A, 2547439, 2574439, 588008, SG12B010, SG12B012, SG12B049, SG12B074, SG14B011, SG9B017, SG9B042 |
| VW | 022 903 119 B, 022 903 119 D, 028 903 119 AB, 028 903 119 AC, 038 903 119 J, 038 903 119 M |
| VW (SVW) | 022 903 119 B, 022 903 119 D, 028 903 119 AB, 028 903 119 AC, 038 903 119 J, 038 903 119 M |
