Hella

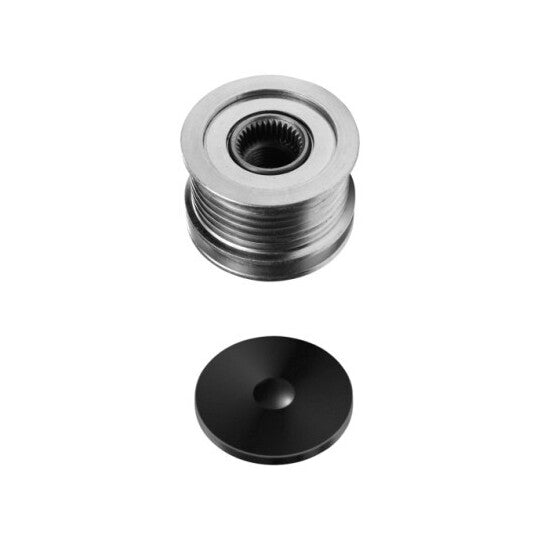

9XU 358 038-071 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-071 Alternator Freewheel Clutch. Part no. 9XU-358-038-071. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
40.3 | mm
Distance from belt pulley to alternator
16 mm
Fitting Depth
16 mm
for manufacturer number
F-225355.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.401 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 120 468 119, 0 120 468 120, 0 120 469 020, 0 120 469 021, 0 120 469 931, 0 120 469 932, 0 123 310 001, 0 123 310 019, 0 123 310 049, 0 123 320 007, 0 123 320 027, 0 123 320 038, 0 123 340 003, 0 123 515 017, 0 123 515 020, 0 124 325 101, 0 126 601 565, 0 986 036 790, 0 986 038 370, 0 986 039 090, 0 986 039 450, 0 986 040 950, 0 986 041 300, 0 986 048 950, 1 126 601 565, 1 127 011 846, F 00M 991 389 |
|---|---|
| BREDA LORETT | CR 3161 |
| CONTINENTAL CTAM | AP9004 |
| DAYCO | ALP2325 |
| FEBI BILSTEIN | 11701 |
| FORD | 1106734, 6M21-10344-BA, 95VW-10344-FA |
| GATES | OAP7040 |
| GEBE | 335171 |
| HELLA | 358 038-071, 358038071 |
| HK | G009Z |
| HUTCHINSON | DB0243 |
| IPD | 12-0009 |
| LUCAS ELECTRICAL | LOPA0006 |
| QUINTON HAZELL | 1010073 |
| RUVILLE | 55471 |
| SEAT | 028 903 119 AA, 028 903 119 AQ, 028 903 119 P |
| SKF | VKM 03106 |
| SKODA | 028 903 119 AA, 028 903 119 AQ, 028 903 119 P |
| SNR | GA754.01 |
| SPIDAN | 0.066471 |
| SWAG | 30 03 0093 |
| Schaeffler INA | 535 0001 10, 79202019, F-225355.07, F-225355.10, F-225355.11, F-225355.4, F-225355.5, F-225355.6, F-225355.7 |
| TRIPLE FIVE | 03.80340, 139281, 332292, 335170, MBI-28310, PBT8566, RKT2056, TA20511, Y2000 |
| VALEO | 588014 |
| VW | 028 903 119 AA, 028 903 119 AQ, 028 903 119 P |
