Hella

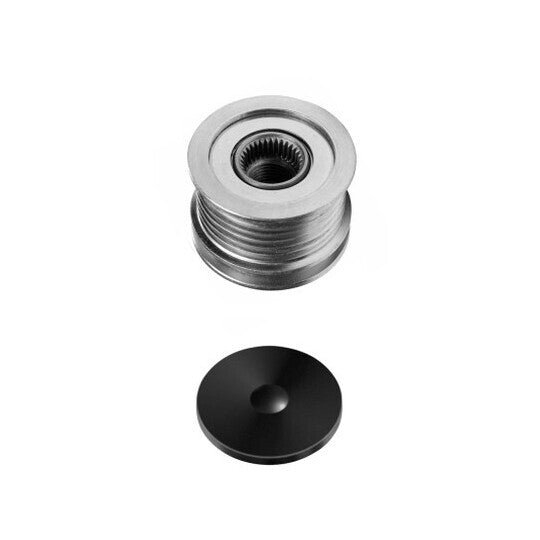

9XU 358 038-151 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-151 Alternator Freewheel Clutch. Part no. 9XU-358-038-151. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
40.3 | mm
Distance from belt pulley to alternator
16 mm
Fitting Depth
7.6 mm
for manufacturer number
F-227079.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.408 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 123 320 051, 0 123 320 065, 0 123 510 082, 0 123 510 107, 0 123 510 108, 0 123 520 023, 0 124 325 105, 1 126 601 597, F 00M 061 023, F 00M 991 304 |
|---|---|
| BREDA LORETT | CR 3075 |
| CONTINENTAL CTAM | AP9015 |
| DAYCO | ALP2337 |
| FEBI BILSTEIN | 15154 |
| GATES | OAP7060 |
| GEBE | 335291 |
| HELLA | 358 038-151, 358038151 |
| HK | G001Z |
| HUTCHINSON | DB0252 |
| IPD | 12-0001 |
| LUCAS ELECTRICAL | LOPA0008 |
| MERCEDES-BENZ | 611 150 01 60, 611 155 02 15, A 611 150 01 60, A 611 155 02 15 |
| RUVILLE | 55128 |
| SKF | VKM 03821 |
| SNR | GA751.03 |
| SWAG | 10 14 0001 |
| Schaeffler INA | 535 0015 10, 79202044, F-228824.1, F-228824.10, F-228824.11, F-228824.12, F-228824.4, F-228824.6, F-228824.7, F-228824.9 |
| TRIPLE FIVE | 03.80353, 230292, 332293, 335290, MBI-28580, PBT8636, RKT2069, TA28502, Y2013 |
| VALEO | 588039 |
