Hella

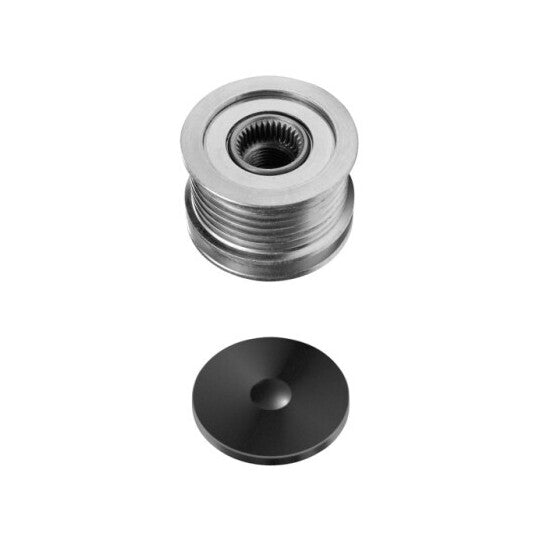

9XU 358 038-171 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-171 Alternator Freewheel Clutch. Part no. 9XU-358-038-171. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
40.3 | mm
Distance from belt pulley to alternator
16 mm
Fitting Depth
11.1 mm
for manufacturer number
F-233197.XX
for manufacturer number
F-559320.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.38 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 124 325 039, 0 124 325 046, 0 124 325 093, 0 124 325 105, 0 124 325 170, 0 124 425 077, 0 124 515 061, 0 124 515 064, 0 124 515 084, 0 124 515 091, 0 124 515 114, 0 124 515 115, 0 124 515 118, 0 124 615 015, 0 124 615 018, 0 124 615 019, 0 124 615 025, 0 124 615 032, 0 124 615 033, 0 124 615 035, 0 124 615 042, 0 124 625 006, 0 124 625 020, 0 124 625 022, 0 131 543 202, 0 131 543 402, 0 986 042 530, 0 986 043 650, 0 986 043 660, 0 986 043 900, 0 986 043 910, 0 986 046 320, 0 986 047 460, 0 986 047 660, 0 986 049 010, F 00M 991 099, F 00M 991 125, F 00M 991 190, F 00M 991 303 |
|---|---|
| BREDA LORETT | CR 3618 |
| CHRYSLER | 04862629AA, 05073920AA, 05080464AA, 05080464AB, 05080464AC, 05080464AD, 05117591AA, RX862629AA |
| CONTINENTAL CTAM | AP9010 |
| DAYCO | ALP2354 |
| FEBI BILSTEIN | 21683 |
| GATES | OAP7057 |
| GEBE | 335571 |
| HELLA | 358 038-171, 358038171 |
| HK | G1066 |
| HUTCHINSON | DB0271 |
| LUCAS ELECTRICAL | LOPA0034 |
| MERCEDES-BENZ | 611 155 03 15, 611 155 05 15, 611 155 07 15, A 611 155 03 15, A 611 155 05 15, A 611 155 07 15 |
| QUINTON HAZELL | 1010101 |
| RUVILLE | 55170 |
| SKF | VKM 03828 |
| SNR | GA751.05 |
| Schaeffler INA | 535 0050 10, 79202044, F-233197, F-233197.01, F-233197.04, F-233197.05, F-233197.2, F-233197.3, F-233197.4, F-233197.5, F-559320, F-559320.01 |
| TRIPLE FIVE | 232624, 332302, 335570, PBT8654, Y2030 |
| VALEO | 2549800, 588020 |
