Hella

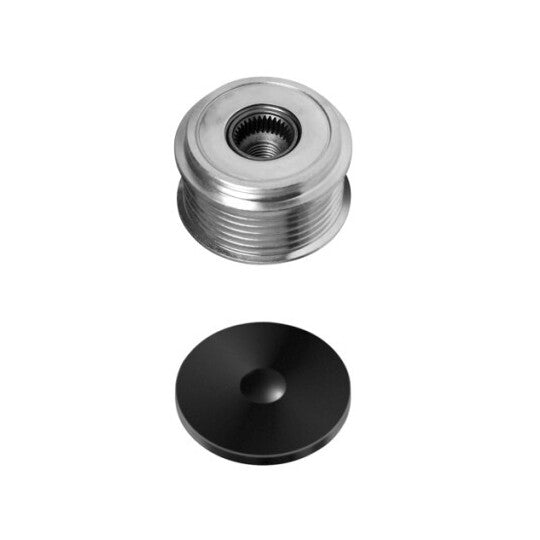

9XU 358 038-261 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-261 Alternator Freewheel Clutch. Part no. 9XU-358-038-261. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
63 | mm
Width
40.6 | mm
Distance from belt pulley to alternator
9 mm
Fitting Depth
12.3 mm
for manufacturer number
920720
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
58 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.529 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3917 |
|---|---|
| CHRYSLER | 04801338AB, 04861506AB, 04861506AD, 04861506AE, 04861506AG, 05142615AA, 4861506AF, 56041578AA, 56041578AD, 56041578AE, 56044672AA, 56044672AB, 56044672AC |
| DENSO | 021040-1110, 021040-1130, 021040-1170, 021040-1320, 021040-1441, 021040-1450, 02140-1110, 121000-3841, 121000-3843, 121000-3846, 121041-1241, 421000-0141, 421000-0142 |
| GATES | OAP7141 |
| HELLA | 358 038-261, 358038261 |
| JEEP | 5 3013 554AB, 5 3013 554AC, 5 3013 554AD, 5 3013 554AE, 5 3013 554AF |
| Litens | 600752 |
| RUVILLE | 58621 |
| Schaeffler INA | 535 0174 10, 79909044 |
| TOYOTA | 2741-50T010, 2741-50T011 |
| TRIPLE FIVE | 3 3594 1, 920615, 920720 |
