Hella

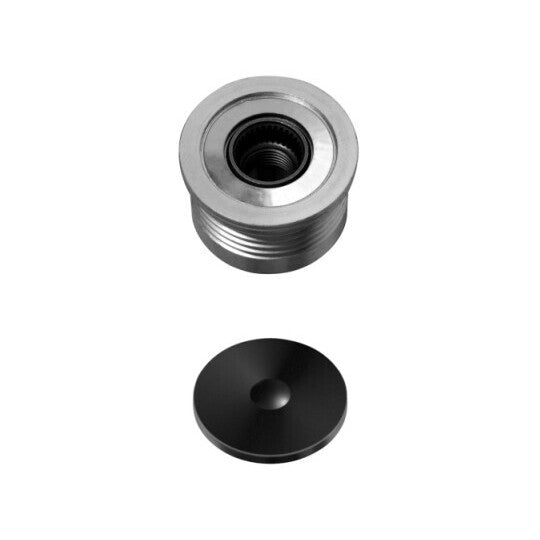

9XU 358 038-291 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-291 Alternator Freewheel Clutch. Part no. 9XU-358-038-291. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
37.4 | mm
Distance from belt pulley to alternator
15 mm
Fitting Depth
16 mm
for manufacturer number
F-234637.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
49 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
5
Shipping details
Weight
0.351 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3485 |
|---|---|
| CONTINENTAL CTAM | AP9043 |
| DAYCO | ALP2352 |
| FEBI BILSTEIN | 33132 |
| GATES | OAP7082 |
| HELLA | 358 038-291, 358038291 |
| HK | G728 |
| HUTCHINSON | DB0261 |
| IPD | 12-0728 |
| LUCAS ELECTRICAL | LOPA0035 |
| MITSUBISHI | S883627 |
| NISSAN | 23100-00Q0B, 23100-00Q1A, 23100-00QAL, 23100-00QBD, 23151-00Q0A |
| OPEL | 44 03 540, 44 04 331, 44 11 318, 44 17 295, 44 17 573, 44 17 846, 44 30 587, 93190867 |
| RENAULT | 23 10 077 35R, 23 10 077 88R, 7700426849, 7701473614, 7701477001, 7701477507, 7711134312, 7711134316, 8200022774, 8200086130, 8200162474, 8200495301, 8200495302, 8200538815, 8200584039, 8200590255 |
| RUVILLE | 55583 |
| SKF | VKM 03602 |
| SNR | GA755.06 |
| Schaeffler INA | 535 0048 10, 79083410, 9083410, F-234637, F-234637.02, F-234637.03, F-234637.04, F-234637.05, F-234637.1 |
| TRIPLE FIVE | 03.80403, 233590, 332322, 335810, RKT2119, Y2020 |
| VALEO | 2548621, 2604092, 437208, 437351, 439292, 439341, 588038, 593516, SG12B050, SG12B095, SG12B108, SG12B116, TG12C091 |
| VAUXHALL | 44 17 573, 93190867 |
| VOLVO | 2 542 523, 3 062 087 0, 3 125 107 3, 3 600 223 1, 8 251 641, 8 602 356, 8 602 806 |
