Hella

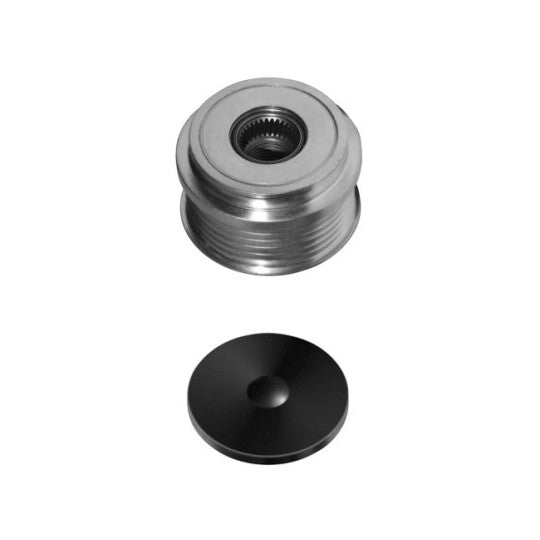

9XU 358 038-371 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-371 Alternator Freewheel Clutch. Part no. 9XU-358-038-371. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
64 | mm
Width
42.5 | mm
Distance from belt pulley to alternator
9 mm
Fitting Depth
20 mm
for manufacturer number
F-240113.XX
for manufacturer number
F-232353.XX
Manufacturer Restriction
Delco Remy
Manufacturer Restriction
Hitachi
Thread Size
M16x1,5
Belt Pulley Ø
60 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.565 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3802 |
|---|---|
| CONTINENTAL CTAM | AP9044 |
| DAYCO | ALP2424 |
| DELCO REMY | 10511026 |
| GATES | OAP7037 |
| GEBE | 353281 |
| GENERAL MOTORS | 97355778 |
| HELLA | 358 038-371, 358038371 |
| HITACHI | GD218089, GD218089-1, LR 1110-503, LR 1110-503B, LR 1110-503F |
| HUTCHINSON | DB0282 |
| ISUZU | 89718-91133, 89718-91134, 89718-91135, 89736-38320, 89736-38321, 89736-38322, 89736-38330, 89803-11541, 89803-11551, 89804-28720, 89804-28730, 89805-64390 |
| OPEL | 12 04 158, 12 04 424, 12 04 425, 1204618, 62 04 183, 62 04 197, 62 04 198, 62 04 199, 62 04 200, 62 04 252, 62 04 275, 62 04 287, 62 04 889, 97355778 |
| RUVILLE | 55375 |
| SKF | VKM 03508 |
| Schaeffler INA | 535 0065 10, 79044020, 9044020, F-232353, F-232353.03, F-232353.1, F-240113, F-240113.01 |
| TRIPLE FIVE | 238690, 332314, 353280 |
| VALEO | 588021 |
| VAUXHALL | 62 04 889, 97355778 |
