Hella

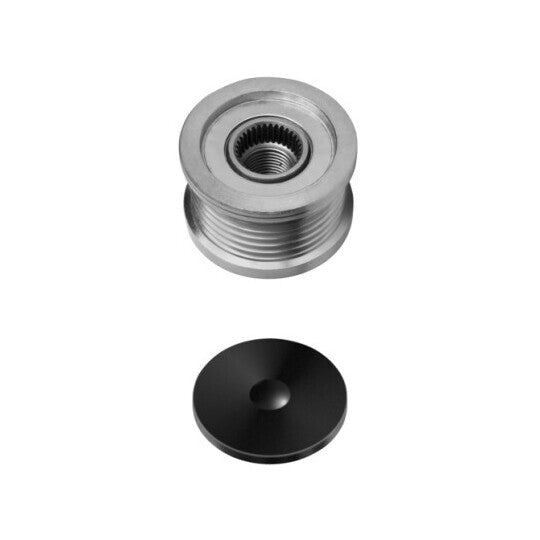

9XU 358 038-391 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-391 Alternator Freewheel Clutch. Part no. 9XU-358-038-391. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
35.3 | mm
Distance from belt pulley to alternator
10 mm
Fitting Depth
11.3 mm
for manufacturer number
F-236566.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
49 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.371 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BMW | 11 31 4 466 271, 12 31 4 466 271, 12 31 7 516 098, 12 31 7 516 099, 12 31 7 516 721, 12 31 7 516 722, 12 31 7 521 488, 12 31 7 521 489, 12 31 7 532 964, 12 31 7 532 968, 12 31 7 533 268, 12 31 7 533 272, 12 31 7 552 352, 4 466 271, 7 516 098, 7 516 099, 7 516 721, 7 516 722, 7 521 488, 7 521 489, 7 532 964, 7 532 968, 7 533 268, 7 533 272, 7 552 352 |
|---|---|
| BMW (BRILLIANCE) | 12 31 7 516 099, 12 31 7 552 352, 4 466 271, 7 516 099, 7 552 352 |
| BOSCH | 0 124 325 072, 0 124 325 087, 0 124 325 116, 0 124 A00 238, 0 986 046 130, F 00M 147 193, F 00M 147 747, F 00M 147 913, F 00M 147 918, F 00M 991 142, F 00M 991 273, F 00M 991 918 |
| BREDA LORETT | CR 3593 |
| CONTINENTAL CTAM | AP9008 |
| DAYCO | ALP2362 |
| FEBI BILSTEIN | 31729 |
| GATES | OAP7054 |
| GEBE | 335841 |
| HELLA | 358 038-391, 358038391 |
| HK | G995 |
| HUTCHINSON | DB0267 |
| IPD | 12-0995 |
| LUCAS ELECTRICAL | LOPA0062 |
| RUVILLE | 55058 |
| SKF | VKM 03870 |
| SNR | GA750.01 |
| SWAG | 20 93 1729 |
| Schaeffler INA | 535 0075 10, 79202092, F-236566, F-236566.01, F-236566.02, F-236566.03 |
| TRIPLE FIVE | 233530, 335840 |
| VALEO | 588056 |
