Hella

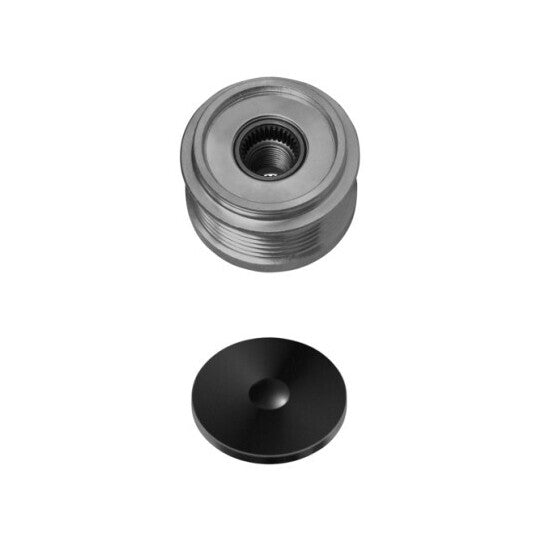

9XU 358 038-431 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-431 Alternator Freewheel Clutch. Part no. 9XU-358-038-431. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
64 | mm
Width
39.6 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
7.6 mm
for manufacturer number
F-233970.XX
Manufacturer Restriction
Denso
Thread Size
M16x1,5
Belt Pulley Ø
60 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.62 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 5249 |
|---|---|
| CARGOPARTS | 233990 |
| DAYCO | ALP2460 |
| DENSO | 71011-0750, 72011-0750 |
| FEBI BILSTEIN | 34711 |
| GATES | OAP7073 |
| HELLA | 358 038-431, 358038431 |
| HYUNDAI | 37300-27010, 37300-27011, 37300-27012, 37300-27013, 37300-27021, 37300-27030, 37300-27031, 37322-27010, 37322-27012 |
| KIA | 37300-27011, 37300-27012, 37300-27013 |
| RUVILLE | 59923 |
| SKF | VKM 06501 |
| Schaeffler INA | 535 0046 10, 79909043, F-233970, F-233970.04, F-233970.05, F-233970.3 |
| TRIPLE FIVE | 233989, 3 3564 1, 332304, Y2026 |
| VALEO | 588046 |
