Hella

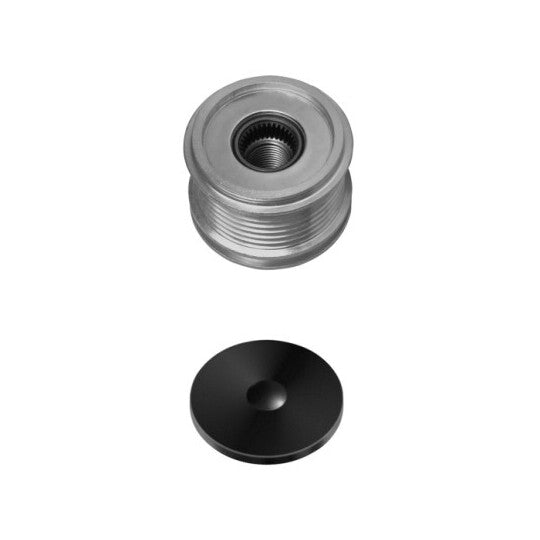

9XU 358 038-441 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-441 Alternator Freewheel Clutch. Part no. 9XU-358-038-441. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
61 | mm
Width
45.2 | mm
Distance from belt pulley to alternator
15 mm
Fitting Depth
11.5 mm
for manufacturer number
F-232001.XX
Manufacturer Restriction
Valeo
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.539 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 124 515 062, 0 124 515 088, 0 124 515 198, 0 124 615 022, 0 124 615 028, 0 986 045 380, 0 986 046 300, F 00M 391 160, F 00M 991 138, F 00M 991 160, F 00M 991 302 |
|---|---|
| BREDA LORETT | CR 3621 |
| CONTINENTAL CTAM | AP9020 |
| DAYCO | ALP2366 |
| FEBI BILSTEIN | 21684 |
| GATES | OAP7056 |
| GEBE | 335681 |
| HELLA | 358 038-441, 358038441 |
| LUCAS ELECTRICAL | LOPA0051 |
| MERCEDES-BENZ | 271 155 00 16, 271 155 01 15, A 271 155 00 16, A 271 155 01 15 |
| RUVILLE | 55173 |
| SKF | VKM 03829 |
| SNR | GA751.09 |
| Schaeffler INA | 535 0042 10, 79202096, F-232001.06, F-232001.07, F-232001.08, F-232001.09, F-232001.2, F-232001.4 |
| TRIPLE FIVE | 234793, 332306, 335680, Y2036 |
| VALEO | 588060, 593625, SG12B062 |
