Hella

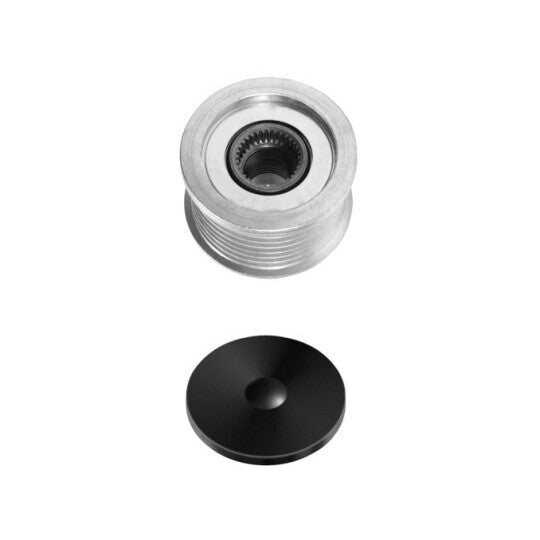

9XU 358 038-531 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-531 Alternator Freewheel Clutch. Part no. 9XU-358-038-531. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
39.7 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
11.1 mm
for manufacturer number
F-236127.XX
Manufacturer Restriction
Bosch
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.381 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 121 715 011, 0 121 715 015, 0 121 813 020, 0 121 813 120, 0 122 0AA 1P0, 0 124 625 017, 0 986 045 410, 0 986 047 690, 0 986 047 697, 0 986 047 710, F 00M 349 826, F 00M 391 110, F 00M 391 146, F 00M 991 157 |
|---|---|
| BREDA LORETT | CR 3791 |
| DAYCO | ALP2365 |
| GATES | OAP7065 |
| HELLA | 358 038-531, 358038531 |
| LUCAS ELECTRICAL | LOPA0070 |
| MERCEDES-BENZ | 628 150 00 60, 642 150 08 60, A 628 150 00 60, A 642 150 08 60 |
| RUVILLE | 55184 |
| SKF | VKM 03819 |
| SNR | GA751.19 |
| Schaeffler INA | 535 0084 10, 79202215, F-236127, F-236127.01, F-236127.02, F-236127.03, F-236127.04, F-236127.05, F-236127.06, F-236127.08 |
| TRIPLE FIVE | 235697, 353120 |
| VALEO | 588072, FG23S048 |
