Hella

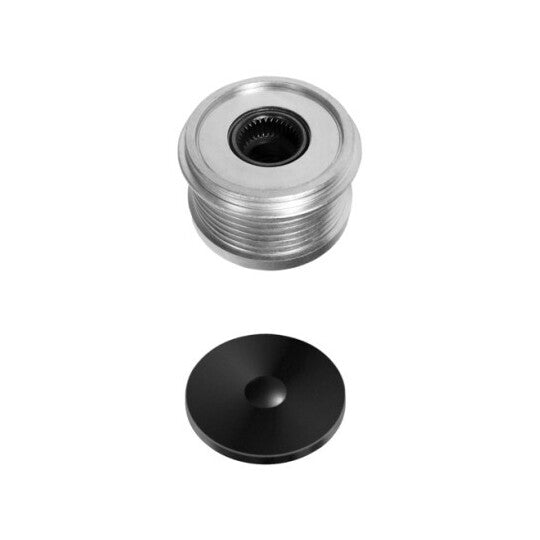

9XU 358 038-631 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-631 Alternator Freewheel Clutch. Part no. 9XU-358-038-631. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
60 | mm
Width
42.9 | mm
Distance from belt pulley to alternator
15 mm
Fitting Depth
11.1 mm
for manufacturer number
F-231108.XX
Manufacturer Restriction
Denso
Manufacturer Restriction
Bosch
Thread Size
M14x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Anticlockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.541 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 986 UR0 312 |
|---|---|
| BREDA LORETT | CR 3451 |
| CONTINENTAL CTAM | AP9051 |
| DAYCO | ALP2383 |
| DENSO | 021040-0970 |
| FEBI BILSTEIN | 30147 |
| GATES | OAP7059 |
| GEBE | 335391 |
| HELLA | 358 038-631, 358038631 |
| LUCAS ELECTRICAL | LOPA0022 |
| QUINTON HAZELL | 1010089 |
| RUVILLE | 56540 |
| SKF | VKM 03652 |
| SNR | GA756.04 |
| Schaeffler INA | 535 0024 10, 79909045, F-231108, F-231108.01, F-231108.02 |
| TRIPLE FIVE | 03.80357, 230314, 3.3539.0, 332298, MBI-28110, PBT8651, RKT2073, Y2017 |
| VALEO | 588047 |
| VOLVO | 3 078 270 1, 8 251 655, 8 601 699, 9 472 908, 9 472 909 |
