Hella

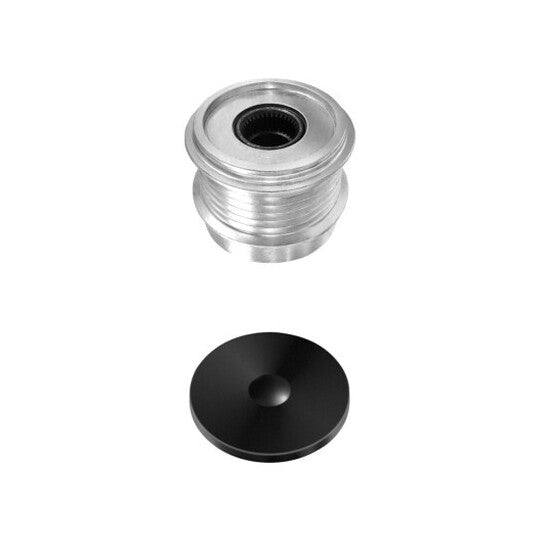

9XU 358 038-711 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-711 Alternator Freewheel Clutch. Part no. 9XU-358-038-711. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
60 | mm
Width
45.6 | mm
Distance from belt pulley to alternator
19 mm
Fitting Depth
7.2 mm
for manufacturer number
920856
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
54 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.521 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 124 325 172, 0 124 325 221, 0 124 425 058, 0 124 425 059, 0 124 425 096, 0 124 425 097, F 00M 147 854, F 00M 991 281, F 00M 992 725, F 00M A47 704 |
|---|---|
| BREDA LORETT | CR 4067 |
| CONTINENTAL CTAM | AP9028 |
| DAYCO | ALP2400 |
| FEBI BILSTEIN | 32297 |
| GATES | OAP7035 |
| GEBE | 354041 |
| GENERAL MOTORS | 55564350 |
| HELLA | 358 038-711, 358038711 |
| LUCAS ELECTRICAL | LOPA0144 |
| Litens | 600856 |
| OPEL | 12 02 115, 12 02 116, 12 04 151, 12 04 175, 55564350, 55571966, 62 04 278, 62 04 279 |
| RUVILLE | 59950 |
| SAAB | 13 30 850 8, 55 56 435 0, 55 57 196 6 |
| SKF | VKM 03505 |
| SNR | GA753.07 |
| Schaeffler INA | 535 0188 10, 79201035 |
| TRIPLE FIVE | 330921, 920856 |
| VAUXHALL | 12 04 151, 12 04 175, 55564350, 55571966 |
