Hella

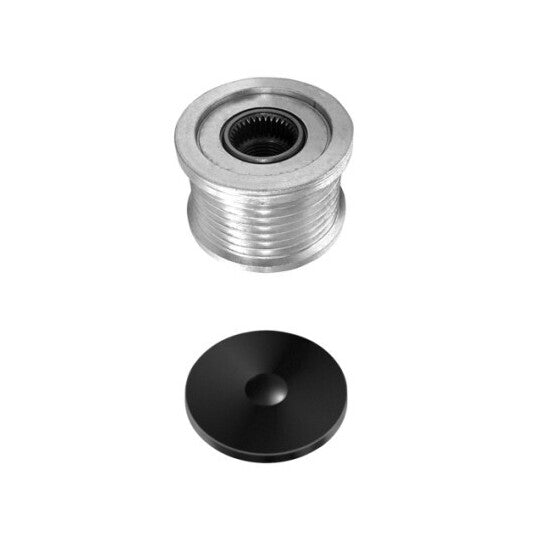

9XU 358 038-741 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-741 Alternator Freewheel Clutch. Part no. 9XU-358-038-741. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
41.4 | mm
Distance from belt pulley to alternator
12 mm
Fitting Depth
16.1 mm
for manufacturer number
F-561464.XX
for manufacturer number
F-236675.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
49 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.424 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3841 |
|---|---|
| CARGOPARTS | 333066 |
| DACIA | 77 01 071 376, 82 00 489 514, 82 01 432 084 |
| DAYCO | ALP2369 |
| GEBE | 353331 |
| HELLA | 358 038-741, 358038741 |
| NISSAN | 23100-00Q0J |
| OPEL | 12 04 193, 44 22 188, 44 31 340 |
| RENAULT | 23 10 006 43R, 23 10 070 33R, 23 10 075 62R, 23 10 078 42R, 23 10 085 73R, 7701071376, 8200404459, 8200404459D, 8200404459E, 8200489514, 8200725683, 8200849752, 8200854117, 8201040749, 8201432084 |
| RUVILLE | 55624 |
| SKF | VKM 03615 |
| Schaeffler INA | 535 0080 10, 79083454, 9083454, F-236675.02, F-236675.03, F-236675.04, F-561464, F-561464.02, F-561464.03, F-561464.04 |
| TRIPLE FIVE | 330200, 333340, 353330 |
| VALEO | 2601010, 2606665, 2610177, 2809427, 588027, 595226, FG15T030, TG12C077, TG12C092, TG12C125, TG15C058, TG15C125, TG15C143 |
