Hella

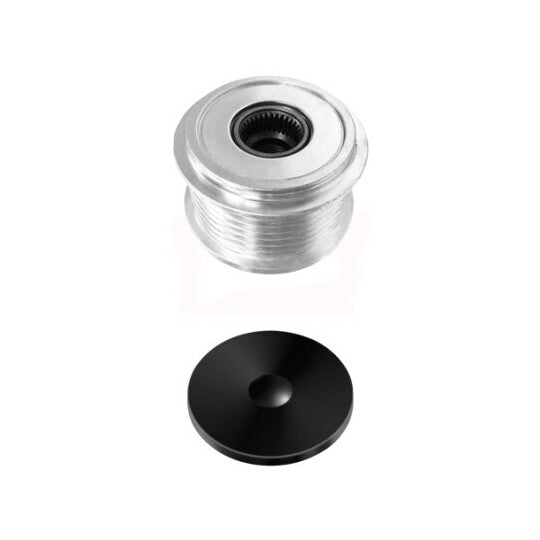

9XU 358 038-781 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-781 Alternator Freewheel Clutch. Part no. 9XU-358-038-781. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
15 | mm
Outer Diameter
64 | mm
Width
42.4 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
12.8 mm
for manufacturer number
214V1-1
for manufacturer number
F-567525.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
58 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
7
Shipping details
Weight
0.565 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 5252 |
|---|---|
| DAYCO | ALP2447 |
| DENSO | 021040-1070 |
| GATES | OAP7125 |
| GEBE | 353941 |
| HELLA | 358 038-781, 358038781 |
| NTN | 214V1-1 |
| RUVILLE | 56962 |
| SKF | VKM 06107 |
| SNR | GA769.00 |
| Schaeffler INA | 535 0173 10, 79909085, F-567525 |
| TOYOTA | 27060-0L021, 27060-30020, 27060-30030, 27060-30040, 27060-30050, 27060-30070, 27060-30120, 27060-30121, 27060-30123, 27060-30130, 27060-30140, 27060-30150, 27060-30151, 27060-30152, 27060-30154, 27060-30160, 27060-54280, 27060-54290, 27060-54430, 27060-67140, 27415-0L010, 27415-0L030, 27415-30020 |
| TRIPLE FIVE | 332133, 353940 |
| VALEO | 588082 |
