Hella

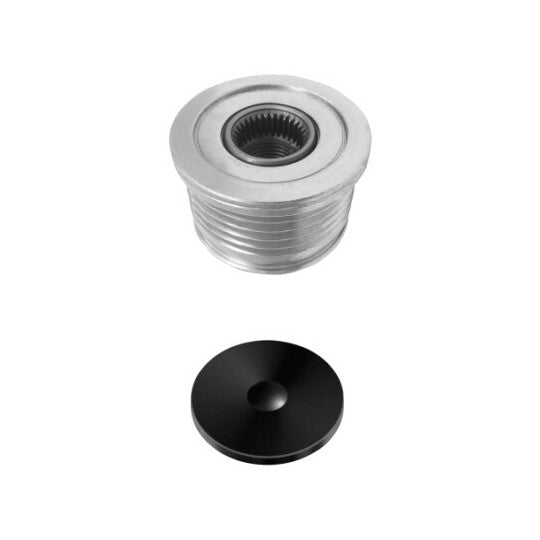

9XU 358 038-801 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-801 Alternator Freewheel Clutch. Part no. 9XU-358-038-801. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
54 | mm
Width
37.5 | mm
Distance from belt pulley to alternator
15 mm
Fitting Depth
14.5 mm
for manufacturer number
F-232030.10/.11
for manufacturer number
F-239809.XX
for manufacturer number
F-553857.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
5
Shipping details
Weight
0.354 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3691 |
|---|---|
| CONTINENTAL CTAM | AP9014 |
| DAYCO | ALP2363, ALP2385 |
| FEBI BILSTEIN | 21689, 27837 |
| FLENNOR | FGF0026 |
| GATES | OAP7053 |
| GEBE | 353451 |
| HELLA | 358 038-801, 358038801 |
| HUTCHINSON | DB0268 |
| Litens | 921703 |
| MERCEDES-BENZ | 640 150 01 60, 640 150 03 60, 640 150 05 60, 640 150 06 60, 640 150 07 60, 640 150 09 60, A 640 150 01 60, A 640 150 03 60, A 640 150 05 60, A 640 150 06 60, A 640 150 07 60, A 640 150 09 60 |
| MITSUBISHI | MN960266, MN960267 |
| QUINTON HAZELL | 1010152 |
| RUVILLE | 55169 |
| SKF | VKM 03826 |
| SMART | 640 150 01 60, 640 150 03 60, 640 150 05 60, 640 150 06 60, 640 150 07 60, 640 150 09 60, A 640 150 01 60, A 640 150 03 60, A 640 150 05 60, A 640 150 06 60, A 640 150 07 60, A 640 150 09 60 |
| SWAG | 10 92 7837 |
| Schaeffler INA | 535 0101 10, 79083411, 9083411, F-232030.10, F-232030.11, F-239809, F-239809.01, F-239809.02, F-239809.03, F-239809.2, F-239809.3, F-553857, F-553857.01, F-553857.02, F-553857.03, F-553857.04, F-553857.05, F-553857.06, F-553857.08, F-553857.09 |
| TRIPLE FIVE | 233847, 333133, 333455, 353450, 920995 |
| TRUCKTEC AUTOMOTIVE | 02.17.049 |
| VALEO | 2546914, 2601992, 2602150, 2602152, 2602751, 2602992, 2603537, 2610606, 437415, 439455, 588025, 593618, 593930, SG15L012, SG15L026, TG11C036, TG11C059, TG15C057, TG15C121 |
