Hella

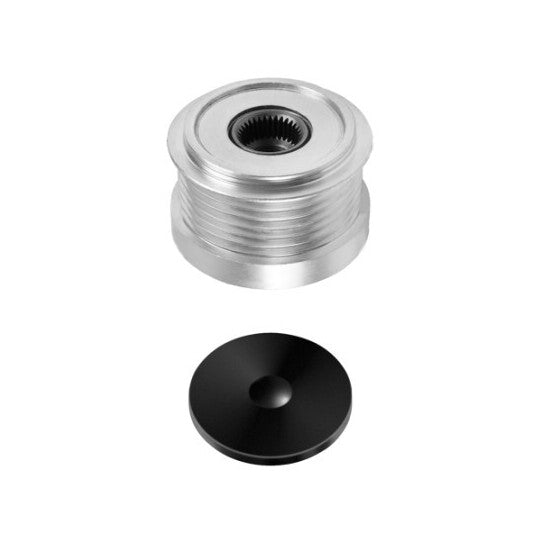

9XU 358 038-831 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-831 Alternator Freewheel Clutch. Part no. 9XU-358-038-831. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
15 | mm
Outer Diameter
65 | mm
Width
39.4 | mm
Distance from belt pulley to alternator
13 mm
Fitting Depth
9.9 mm
for manufacturer number
F-233106.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
59 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.629 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3854 |
|---|---|
| CONTINENTAL CTAM | AP9062 |
| DAYCO | ALP2429 |
| DENSO | 081020-0010, 081020-0011 |
| FEBI BILSTEIN | 34667 |
| HELLA | 358 038-831, 358038831 |
| HYUNDAI | 37300-27502, 37300-27503, 37300-27504, 37300-27600, 37300-27601, 37300-27602, 37322-27500, 37322-27501, 50210-40108 |
| RUVILLE | 59938 |
| SKF | VKM 06500 |
| Schaeffler INA | 535 0110 10, 7990, 79909057, 9057, F-233106.03, F-233106.04, F-233106.05, F-233106.06, F-233106.1 |
| TRIPLE FIVE | 237500, 3 5356 1 |
| VALEO | 588076 |
