Hella

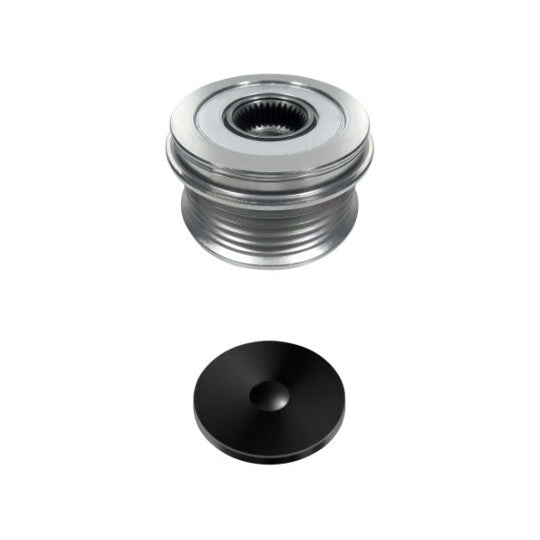

9XU 358 038-931 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 038-931 Alternator Freewheel Clutch. Part no. 9XU-358-038-931. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
59 | mm
Width
34.7 | mm
Distance from belt pulley to alternator
8 mm
Fitting Depth
7.8 mm
for manufacturer number
F-553240.XX
Manufacturer Restriction
Bosch
Thread Size
M16x1,5
Belt Pulley Ø
54 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
5
Shipping details
Weight
0.485 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BOSCH | 0 124 425 085, 0 124 425 087, F 00M 992 718 |
|---|---|
| BREDA LORETT | CR 4082 |
| FEBI BILSTEIN | 38263 |
| GEBE | 354381 |
| GENERAL MOTORS | 13266813, 93185744 |
| HELLA | 358 038-931, 358038931 |
| OPEL | 12 02 194, 12 02 195, 12 04 184, 13266813, 90 97 833, 93185744 |
| RUVILLE | 59973 |
| Schaeffler INA | 535 0211 10, 79202245, F-553240, F-553240.01 |
| TRIPLE FIVE | 333073, 354380 |
| VAUXHALL | 12 04 184, 13266809, 13266810, 13266813, 90 97 833, 93185744 |
