Hella

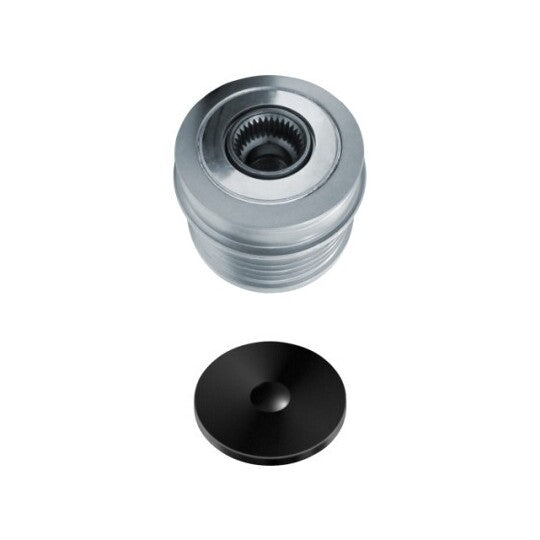

9XU 358 039-031 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 039-031 Alternator Freewheel Clutch. Part no. 9XU-358-039-031. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
59 | mm
Width
39.6 | mm
Distance from belt pulley to alternator
11 mm
Fitting Depth
11.1 mm
for manufacturer number
F-582200.XX
Manufacturer Restriction
Denso
Thread Size
M14x1,5
Belt Pulley Ø
56 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
5
Shipping details
Weight
0.511 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 4542 |
|---|---|
| DENSO | 104210-4640 |
| FEBI BILSTEIN | 38268 |
| FORD | 3M5T-10300-JC, 3M5T-10300-JD, 3M5T-10300-SC, 3M5T-10300-SD |
| GEBE | 354621 |
| HELLA | 358 039-031, 358039031 |
| Koyo | WCPN36RC4X |
| RUVILLE | 59981 |
| SKF | VKM 03654 |
| Schaeffler INA | 535 0218 10, F-582200 |
| TRIPLE FIVE | 3 5462 0, 331742 |
| VALEO | 588086 |
| VOLVO | 3 066 710 3, 3 073 752 9, 3 600 146 3, 8 603 268, 8 603 496 |
