Hella

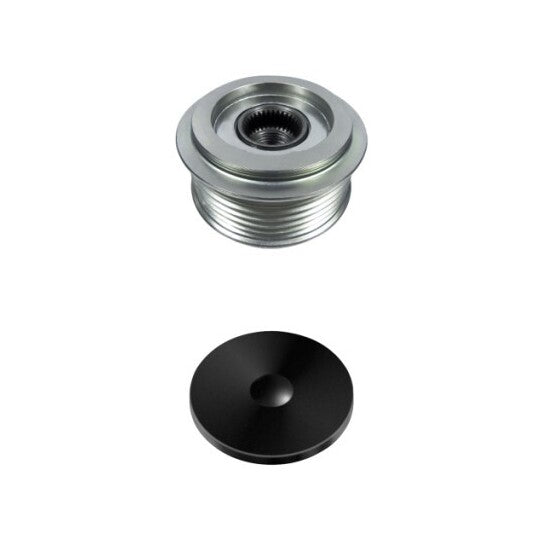

9XU 358 039-241 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 039-241 Alternator Freewheel Clutch. Part no. 9XU-358-039-241. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
66 | mm
Width
42 | mm
Distance from belt pulley to alternator
15 mm
Fitting Depth
11.3 mm
for manufacturer number
F-230866/.01/.03
for manufacturer number
F-230866.08/.09/.12
Manufacturer Restriction
Magneti Marelli
Thread Size
M17x1,5
Belt Pulley Ø
62 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.639 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| ALFA ROMEO | 994 8225 |
|---|---|
| BREDA LORETT | CR 4041 |
| FIAT | 46544329, 46554408, 46774430 |
| HELLA | 358 039-241, 358039241 |
| MAGNETI MARELLI | 8362397.0 |
| RUVILLE | 56026 |
| SNR | GA758.05 |
| Schaeffler INA | 535 0144 10, F-230866, F-230866.01, F-230866.03, F-230866.08, F-230866.09, F-230866.12 |
| TRIPLE FIVE | 354030 |
| VALEO | 8362397 |
