Hella

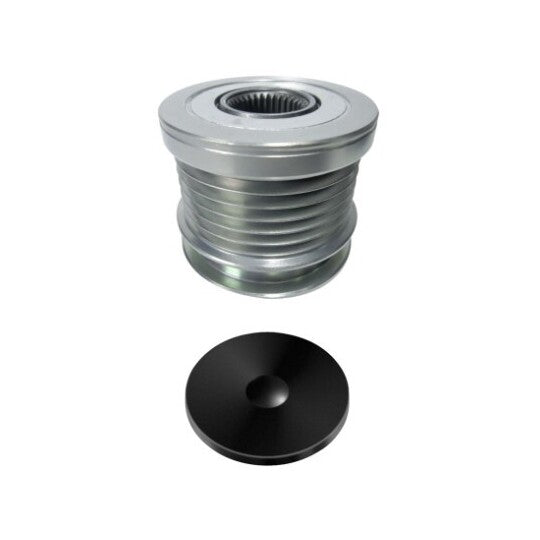

9XU 358 039-261 Alternator Freewheel Clutch
SKU / part number
Hella 9XU 358 039-261 Alternator Freewheel Clutch. Part no. 9XU-358-039-261. Check specifications, vehicle fitment and references below.
Specifications
Inner Diameter
17 | mm
Outer Diameter
55 | mm
Width
47.7 | mm
Distance from belt pulley to alternator
19 mm
Fitting Depth
14.5 mm
for manufacturer number
F-552901.XX
Manufacturer Restriction
Valeo
Thread Size
M16x1,5
Belt Pulley Ø
50 mm
Rotation Direction
Clockwise rotation
Supplementary Article/Supplementary Info 2
with cap
Number of grooves
6
Shipping details
Weight
0.442 Kg
Customs Code
851190
Country of Origin
Brazil
Cross-Reference Numbers
| BREDA LORETT | CR 3912 |
|---|---|
| CONTINENTAL CTAM | AP9050 |
| DAYCO | ALP2407 |
| FEBI BILSTEIN | 33473 |
| GATES | OAP7092 |
| HELLA | 358 039-261, 358039261 |
| LUCAS ELECTRICAL | LOPA0133 |
| MERCEDES-BENZ | 159 150 00 60, 278 150 00 60, 646 155 01 15, A 159 150 00 60, A 278 150 00 60, A 646 155 01 15 |
| RUVILLE | 59922 |
| SKF | VKM 03810 |
| Schaeffler INA | 535 0168 10, F-552901.01, F-552901.02, F-552901.03, F-552901.04, F-552901.05, F-552901.06, F-552901.07 |
| TRIPLE FIVE | 332100, 353910 |
| VALEO | 2604126, 2604640, 2610374, 439585, 439619, 440057, 588031, FG15T036, FG15T079, FG18S012, FG18S047, TG12C063, TG15C130, TG15C133, TG17C041, TG17C061, TG23C017, TG23C022 |
