Herth+Buss Jakoparts

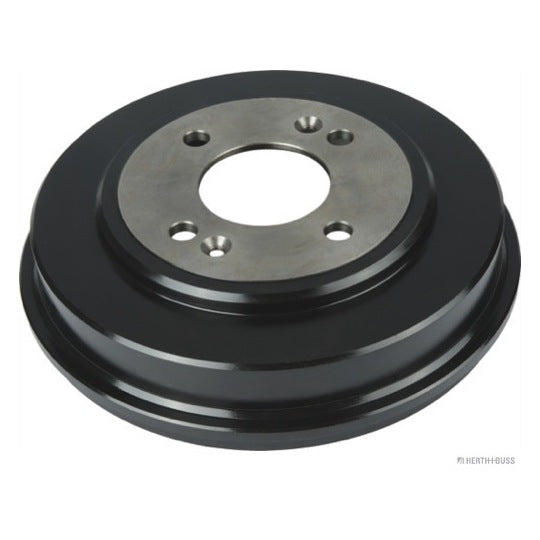

J3400526 Brake Drum
SKU / part number
Herth+Buss Jakoparts J3400526 Brake Drum. Part no. J3400526. Check specifications, vehicle fitment and references below.
Specifications
Inner brake drum diameter
203.2 mm
Inner brake drum height
38.3 mm
Bolt Hole Circle Ø
100 mm
No. of holes 1
4
No. of holes 2
2
Wheel Hub Diameter
62.5 mm
Total brake drum height
58 mm
max. brake drum reboring dimension
205.2 mm
Fitting Position
Rear Axle
Shipping details
Weight
4.657 Kg
Customs Code
870830
Country of Origin
China
Cross-Reference Numbers
| A.B.S. | 7148-S |
|---|---|
| A.Z. Meisterteile | AZMT-44-028-1219 |
| APEC | DRM9948 |
| ASHIKA | 56-H0-009, 56-H0-009C |
| ATE | 24.0220-3038.1, 480315 |
| BENDIX | 329755B |
| BENDIX Braking | BDM1092 |
| BLUE PRINT | ADG04707 |
| BORG & BECK | BBR7207 |
| BRECO | BT 1163 |
| BREMBO | 14C01210 |
| BSG | BSG 40-225-009 |
| Brake ENGINEERING | DR962416 |
| DELPHI | BF517 |
| DJ PARTS | BR1105 |
| EUROBRAKE | 5825253408 |
| FERODO | FDR329755 |
| HELLA | 8DT 355 301-041 |
| HELLA PAGID | 8DT 355 301-041 |
| HP (ZEBRA) | HP66654 |
| HYUNDAI | 58411-1C300 |
| Hi-Q | SD1079 |
| IAP QUALITY PARTS | 710-07046 |
| JAPANPARTS | TA-H09, TA-H09C, TAH09JM |
| JAPKO | 56H09, 56H09C |
| JPN | 60H0515-JPN |
| JURATEK | JDR117 |
| JURID | 329755J |
| KAMOKA | 104051 |
| KAVO PARTS | BD-3360 |
| KIA | 58411-1C300 |
| LYNXAUTO | BM-1072 |
| MAGNETI MARELLI | 600000092010 |
| MANDO | MBD050066 |
| MAXGEAR | 19-3201 |
| MAXTECH | 866218.0000, 866218.0060, 866218.0080 |
| MDR | MBD-2H09 |
| MEYLE | 37-15 523 0006 |
| MGA | T7610 |
| MINTEX | MBD312 |
| MOTAQUIP | LVBE705 |
| NAPA | NDR1056 |
| NIPPARTS | J3400514 |
| NK | 253408 |
| NPS | H340I02 |
| OPEN PARTS | BAD9082.10 |
| OPTIMAL | BT-2130 |
| Oyodo | 60H0515-HYU, 60H0515-OYO |
| PAGID | 61336 |
| PATRON | PDR1705 |
| PEMEBLA | JAPTA-H09 |
| PROFIT | 50200043 |
| PROTECHNIC | PRT105 |
| RED-LINE | 41HY013 |
| REMSA | 7162.00 |
| RIDEX | 123B0138 |
| ROADHOUSE | 7162.00 |
| Stark | SKBDM-0800137 |
| TEXTAR | 94033300, 98100 0333 0 1 |
| TRIALLI | TF 084333 |
| TRISCAN | 8120 43208, 8120 43208C |
| TRW | DB4401 |
| VALEO | 237051 |
| VILLAR | 627.0330 |
| WOKING | B7162.00 |
| ZEKKERT | BS-5215 |
| ZIMMERMANN | 285.1681.00, 285.1681.20 |
| sbs | 1825253408 |
