Ina
535 0074 10 Alternator Freewheel Clutch
SKU / part number
Ina 535 0074 10 Alternator Freewheel Clutch. Part no. 535-0074-10. Check specifications, vehicle fitment and references below.
Specifications

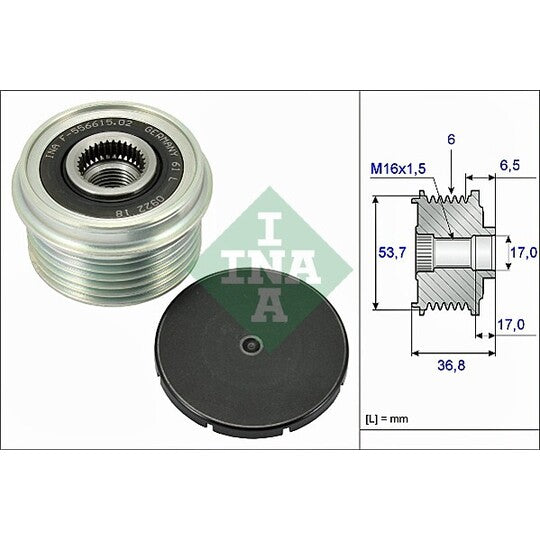

Diameter 1/Diameter 2
53,7/17,0 | mm
Width
36.8 | mm
for manufacturer number
F-556615.02
for manufacturer number
F-556615
for manufacturer number
F-232854.XX
Number of grooves
6
Distance to first groove
6.5 mm
Supplementary Article/Supplementary Info 2
Requires special tools for mounting
Shipping details
Weight
0.47 Kg
Customs Code
851190
Country of Origin
Germany
Cross-Reference Numbers
| AS-PL | AFP9007 |
|---|---|
| BREDA LORETT | CR 4049, CR4049 |
| CONTINENTAL CTAM | AP9037 |
| FORD | 1478119, 1S7T-10300-AB, 1S7T-10300-CC, 1S7T-10300-CD, 1S7T-10300-CE, 1S7T-10300-CF, 1S7T10300AB, 1S7T10300CC, 1S7T10300CD, 1S7T10300CE, 1S7T10300CF |
| GATES | 7789-10229, 778910229, OAP7239 |
| HUTCHINSON | DB0281 |
| IPD | 15-3293, 153293 |
| LUCAS ELECTRICAL | LOPA0061 |
| RUVILLE | 57101 |
| SCHAEFFLER GRUPPE | 535 0074 10, 535007410 |
| SKF | VKM 03408, VKM03408 |
| Schaeffler INA | F-232854.03, F-232854.06, F-232854.3, F-556615, F-556615.02, F23285403, F23285406, F2328543, F556615, F55661502 |
| TRIPLE FIVE | 3 3590 1, 333760, 335900, 335901, GA752.01, GA75201 |
| VALEO | 588065 |
| VISTEON | 1S7U-10A352-DB, 1S7U10A352DB |
| ZEN SA | 5429 |
