Kolbenschmidt

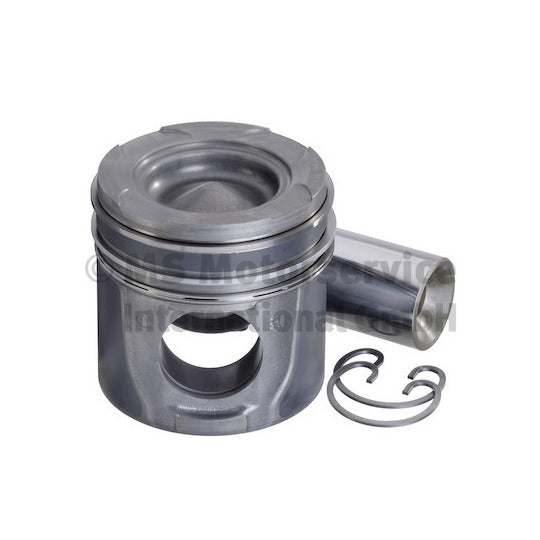

40836600 Piston
SKU / part number
Kolbenschmidt 40836600 Piston. Part no. 40836600. Check specifications, vehicle fitment and references below.
Specifications
Length
121.8 | mm
Production Number
120818
Cylinder Bore
120 mm
Piston Clearance
0.12 mm
Compression Height
76.8 mm
Recess Depth 1
19.7 mm
Valve Pocket Depth 1
2 mm
Valve Pocket Depth 2
2 mm
Recess Diameter
68.77 mm
Component Number
65982
Component Number
66045
Component Number
66046
Standard Size
STD
Bolt Head Diameter
52 mm
Bolt Length
96 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Shipping details
Weight
3.443 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| FEDERAL | 87-428600-00 |
|---|---|
| MAHLE | 227 PI, 00111 000 |
| MAN | 51.02500-6126, 51.02500-6263, 51.02500-6284, 51.02500-6296 |
