Kolbenschmidt

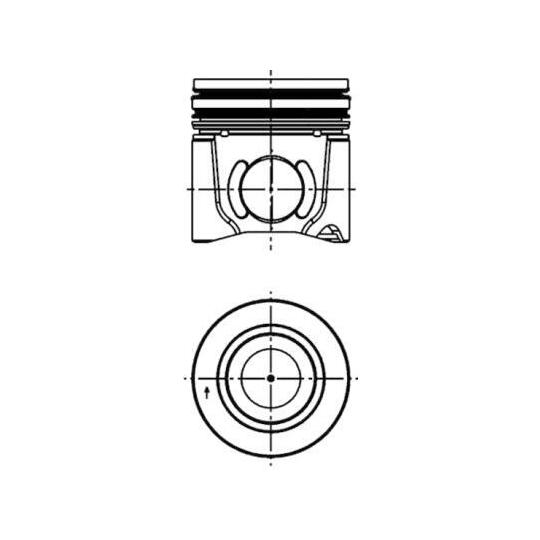

41077600 Piston
SKU / part number
Kolbenschmidt 41077600 Piston. Part no. 41077600. Check specifications, vehicle fitment and references below.
Specifications
Length
105.38 | mm
Production Number
102095
Cylinder Bore
102 mm
Piston Clearance
0.1 mm
Compression Height
71.38 mm
Recess Depth 1
17.1 mm
Recess Diameter
56.8 mm
Component Number
62358
Component Number
63194
Component Number
63196
Standard Size
STD
Bolt Head Diameter
40 mm
Bolt Length
83 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Shipping details
Weight
2.02 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| IVECO | 2995769, 2996158, 2996306, 2996845, 504076852 |
|---|---|
| MAHLE | 007 PI, 00148 000 |
| METAL LEVE | PA9826 |
| NÜRAL | 87-427900-00 |
