Kolbenschmidt

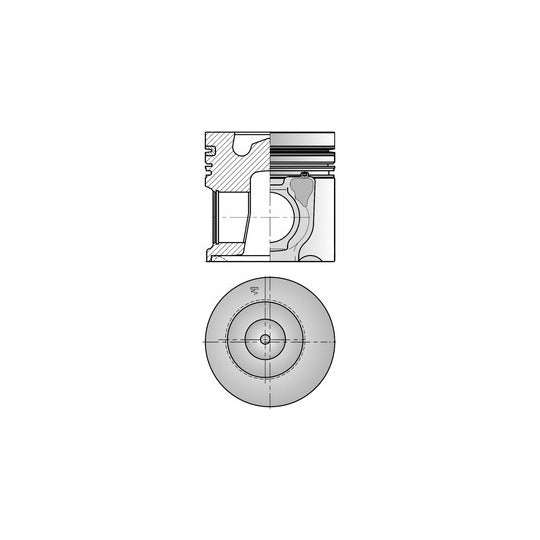

41504600 Piston
SKU / part number
Kolbenschmidt 41504600 Piston. Part no. 41504600. Check specifications, vehicle fitment and references below.
Specifications
Length
108 | mm
Production Number
108117
Cylinder Bore
108 mm
Piston Clearance
0.1 mm
Compression Height
71.1 mm
Recess Depth 1
19.65 mm
Recess Diameter
64 mm
Component Number
63291
Component Number
63292
Component Number
63293
Standard Size
STD
Bolt Head Diameter
42 mm
Bolt Length
86 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Shipping details
Weight
2.303 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| DEUTZ | 0425 5201, 0425 5213, 0425 5214, 0429 4189, 0429 4190, 0450 1351 |
|---|---|
| DEUTZ-FAHR | 0425 5201, 0425 5213, 0425 5214, 0429 4189, 0429 4190, 0450 1351 |
| MONDIAL | 09.124252, 09.124252.4, 61.40.0925 |
| NÜRAL | 87-136900-10 |
| VOLVO | 20846619 |
