Lucas

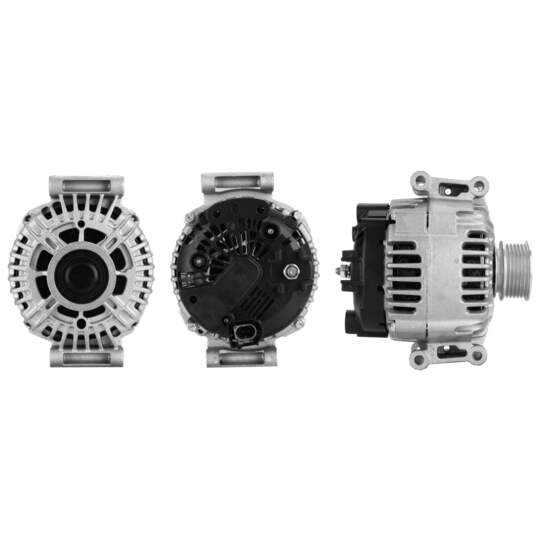

LRA02256 Alternator
SKU / part number
Lucas LRA02256 Alternator. Part no. LRA02256. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
150 A
Vehicle Main Current
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
56 mm
Number of ribs
6
Clamp
L-DFM
Plug Type ID
0121
Bore Diameter 1
10 mm
Parameter
B+M8
Net weight
6.8 kg
Shipping details
Weight
7.261 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | A0076, A3394S, A3611PR |
|---|---|
| ATL Autotechnik | L44910 |
| AUDI | 06B903016AC, 06B903016Q, 06B903016QX, 06B903019GX, 06D903016, 06D903016X |
| AUTOELECTRO | AEC1769 |
| BOSCH | 0124615009, 0986044910, 1986A01167 |
| BV PSH | 205.527.150.000, 205.527.150.004, 205.527.150.008, 205.527.150.010, 205.527.150.018, 205.527.150.210, 205.527.150.500, 205.527.150.505 |
| CASCO | CAL15481AS, CAL15481GS |
| CEVAM | 4644 |
| DELCO REMY | DRB4910, RAA25021 |
| DENSO | 63731769010 |
| DRI | 2113241502 |
| ELSTOCK | 28-4734 |
| ERA | 210546, 210546A |
| FRIESEN | 9044910 |
| HC-Cargo | 116172 |
| HELLA | 8EL 012, 428-761, 8EL738164-001 |
| HERTH+BUSS ELPARTS | 32046180 |
| HOLGER CRISTIANSEN | CA1769IR |
| LUCAS ELECTRICAL | LRA2256 |
| MAGNETI MARELLI | 063731769010, 944390449100 |
| PowerMax | 9212685 |
| QUINTON HAZELL | QRA2772 |
| RE-EX | 501-02348 |
| SOVEREIGN | SB039 |
| TMI | AL02348 |
| VALEO | 2542687, 2542687A, 2543313D, 437468, 439498, TG15C017, TG15C065 |
| VW | 06B903016AC, 06B903016Q, 06B903016QX, 06D903016, 06D903016X |
| WAI | 11064R |
