Lucas

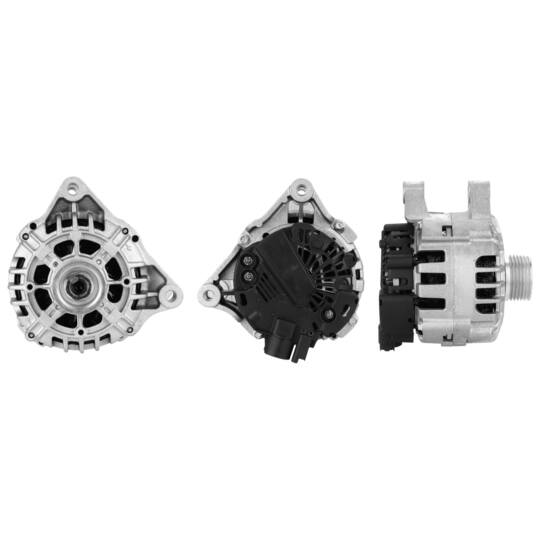

LRA02303 Alternator
SKU / part number
Lucas LRA02303 Alternator. Part no. LRA02303. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
80 A
Vehicle Main Current
for vehicles with 12V main current
Voltage
14 V
Pulleys
with multi-belt pulley
Belt Pulley Ø
49 mm
Number of ribs
6
Clamp
M8 B+
Clamp
L-DFM
Plug Type ID
0129
Bore Diameter 1
10 mm
Net weight
5.1 kg
Shipping details
Weight
5.326 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | A3609PR |
|---|---|
| BOSCH | 0986049560 |
| BV PSH | 225.531.080.000 |
| CEVAM | 4701 |
| CITROËN | 5702C9, 5705AQ, 5705AW, 5705EN, 5705KZ, 9642879680 |
| DELCO REMY | DRA4045, RAA15156 |
| DENSO | 63377300010 |
| DRI | 229123802 |
| EAI | 56743 |
| EDR | 934045 |
| ELSTOCK | 28-4791 |
| HELLA | 8EL737987-001 |
| HOLGER CRISTIANSEN | CA1665IR |
| LUCAS ELECTRICAL | LRA2303 |
| MAGNETI MARELLI | 063377300010, 63377300, MAN7300 |
| NK | 4837010 |
| PEUGEOT | 5702A3, 5702C9, 5705AW, 5705EN, 5705KZ, 9638544280, 9649611680 |
| QX COMPONENTS | QA4330 |
| RE-EX | 501-02396 |
| SOVEREIGN | SA802 |
| TMI | AL02396 |
| VALEO | 200092, 2542794A, 2542923, 2542923A, 437461, 439495, 746100, 746131, A13VI282, SG8B022, SG9B064, TG9B025 |
| WAI | 23166R |
