Lucas

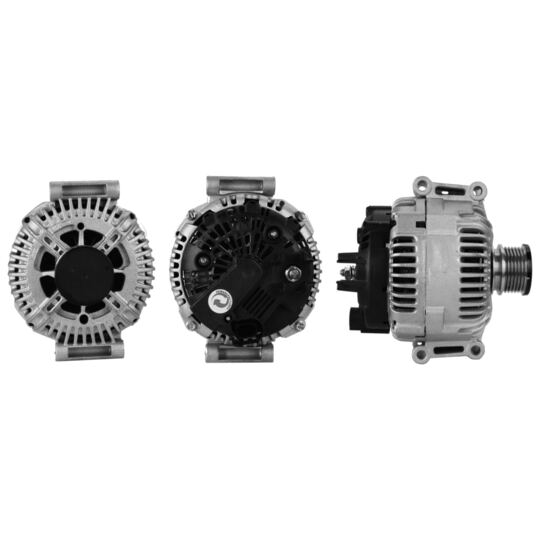

LRA03029 Alternator
SKU / part number
Lucas LRA03029 Alternator. Part no. LRA03029. Check specifications, vehicle fitment and references below.
Specifications
Thickness 1
70 | mm
Alternator Charging Current
180 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
50 mm
Number of ribs
6
Clamp
M8 B+
Clamp
COM/LIN2
Plug Type ID
0238
for OE number
TG17C041 TG17C061
Bore Diameter 1
9 mm
Net weight
7.7 kg
Always compare old and new part
in particular OE No.
Shipping details
Weight
7.7 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10443399, 11443399 |
|---|---|
| AS-PL | A3107 |
| ATL Autotechnik | L80540 |
| AUTOELECTRO | AEK3029 |
| BOM-Prestolite | A2001V |
| BOSCH | 0986081910 |
| BV PSH | 555.577.180.000, 555.577.180.004, 555.577.180.009, 555.577.180.208, 555.577.180.340, 555.577.180.500, 555.577.180.505 |
| CASCO | CAL15349, CAL15349AS, CAL15349GS |
| CEVAM | 4823 |
| DELCO REMY | DRA0198, RAA11209 |
| DENSO | 63732038010 |
| DRI | 2251771802 |
| ELSTOCK | 28-5641 |
| ERA | 210614, 210614A |
| EUROTEC | 12090266 |
| FRIESEN | 9090459 |
| HC-Cargo | 114102, 116068 |
| HELLA | 8EL012430-201, 8EL738212-661 |
| HOLGER CRISTIANSEN | CA2038IR |
| JP GROUP | 1390104900 |
| MAGNETI MARELLI | 063732038010, 359002800980, 943320381010, 944390904590, MARC2038, MQA2038 |
| MERCEDES-BENZ | 6461540102, 6461541102, A6461540102, A6461541102 |
| NK | 4890459 |
| PowerMax | 89214438 |
| QUINTON HAZELL | QRA1269 |
| RE-EX | 501-02682 |
| TMI | AL02682 |
| VALEO | 200198, 2543248A, 2543498A, 2543498B, 439585, 439619, 440057, 440176, 747043, 747066, TG17C041, TG17C061 |
| WAI | 23290N |
