Lucas

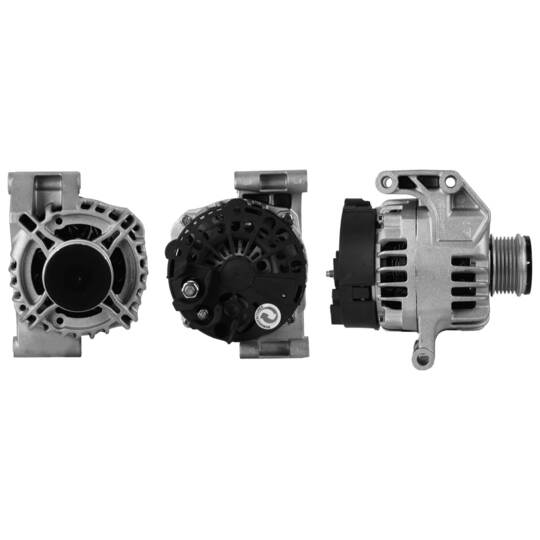

LRA03224 Alternator
SKU / part number
Lucas LRA03224 Alternator. Part no. LRA03224. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
105 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
54 mm
Number of ribs
6
Clamp
M8 B+ M5 D+
Plug Type ID
0230
Bore Diameter 1
9 mm
Bore Diameter 2
9 mm
Net weight
5.16 kg
Shipping details
Weight
5.509 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10443224 |
|---|---|
| AS-PL | A3133 |
| ATL Autotechnik | L81310 |
| BOSCH | 0124225063, 0986080980 |
| BV PSH | 135.535.105, 135.535.105.000, 135.535.105.050, 135.535.105.058, 135.535.105.059, 135.535.105.260, 135.535.105.500, 505.555.115.500 |
| CASCO | CAL30216AS, CAL30216GS, CAL30218GS, CAL30231GS |
| CEVAM | 9459 |
| DELCO REMY | DRA0207, RAA11318 |
| DENSO | 101210-1030, 101210-1130, 101210-1131, 101210-1132, 101210-1200, 101210-1201, 101210-1202, 102211-8620, 102211-8622, 63377494010, MS101210-1202 |
| DRI | 2281511052 |
| ELSTOCK | 28-5836 |
| ERA | 210748, 210748A |
| EUROTEC | 12090185, 12090378, 12090463 |
| FIAT | 46835095, 51727335, 51784843, 51784846, 51787210, 51805801, 51854911, 51854916, 52003518, 71784310, 71793464 |
| FRIESEN | 9090532 |
| GENERAL MOTORS | 93169024, 93185261, 95520871 |
| HELLA | 8EL 012, 430-041, 8EL738212-231 |
| HOLGER CRISTIANSEN | 114451, CA1934IR |
| LANCIA | 46835095, 51805801, 51854911 |
| MAGNETI MARELLI | 063377494010, 359002801360, 63310504, 63377023, 63377494, 943319341010, 944390905320, MAN7023, MARC1934 |
| NK | 4823002 |
| OPEL | 1204429, 13197578, 13256929, 6204213, 6204281, 93169024, 95520871 |
| QUINTON HAZELL | QRA1152 |
| RE-EX | 501-02863 |
| SUZUKI | 31400-M86J00 |
| TATA | 00518696420E |
| TMI | AL02863 |
| VALEO | 2542729E, 2543211A, 2543479, 2610213A, 437533, 439539, 439615, 440151, 747031, TG9S011, TG9S027, TG9S039, TG9S091 |
| VAUXHALL | 13256929, 93169024, 95520871 |
