Lucas

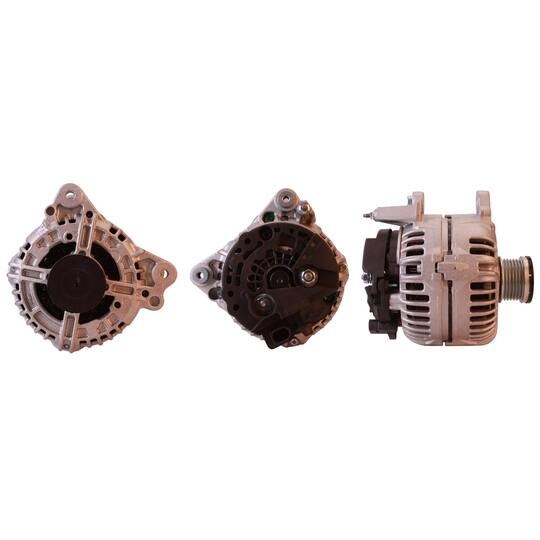

LRA03504 Alternator
SKU / part number
Lucas LRA03504 Alternator. Part no. LRA03504. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
140 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
50 mm
Number of ribs
6
Clamp
M8 B+
Clamp
L-DFM
Plug Type ID
0121
Bore Diameter 1
8 mm
Net weight
6.84 kg
Shipping details
Weight
7.093 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| ALANKO | 10444251 |
|---|---|
| AS-PL | A0365, A0365PR |
| ATL Autotechnik | L84940 |
| AUDI | 03F903023D, 03F903023DX, 03F903023J |
| AUTOELECTRO | AEG1113, AEK3504 |
| BOM-Prestolite | A1075V |
| BOSCH | 0124525201, 0124525221, 0124525222, 0124525545, 0986082230 |
| BV PSH | 305.907.140.010, 305.907.140.018, 305.907.140.210, 305.907.140.280, 305.907.140.281 |
| CASCO | CCP90224 |
| CEVAM | 9199 |
| DELCO REMY | DRA0578, DRA0603, RAA11689, RAA11714 |
| DENSO | 63732118010 |
| DRI | 2113771402 |
| ELSTOCK | 28-6614 |
| ERA | 209499, 209499A |
| EUROTEC | 12090365 |
| FRIESEN | 9090919 |
| HC-Cargo | 115765 |
| HELLA | 8EL 011, 713-381 |
| HOLGER CRISTIANSEN | CA2118IR |
| MAGNETI MARELLI | 063732118010, MQA2118 |
| MAHLE | MG 1095 |
| NK | 4847924 |
| PowerMax | 89215515 |
| RE-EX | 501-03117 |
| SEAT | 03F903023D, 03F903023DX, 03F903023F, 03F903023FX, 03F903023J |
| SKODA | 03F903023A, 03F903023D, 03F903023DX, 03F903023F, 03F903023FX, 03F903023J |
| TMI | AL03117 |
| VALEO | 440895, 443085 |
| VW | 03F903023D, 03F903023DX, 03F903023F, 03F903023FX, 03F903023J |
| WAI | 20149N |
