Lucas

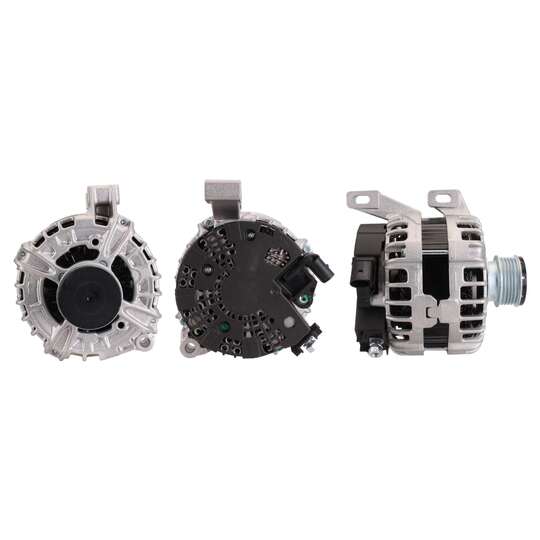

LRA03568 Alternator
SKU / part number
Lucas LRA03568 Alternator. Part no. LRA03568. Check specifications, vehicle fitment and references below.
Specifications
Alternator Charging Current
180 A
Vehicle Electrical System Design
for vehicles with 12V main current
Voltage
14 V
Pulleys
with freewheel belt pulley
Belt Pulley Ø
54 mm
Number of ribs
5
Clamp
M8 B+
Clamp
COM-D
Plug Type ID
0206
Manufacturer Restriction
Bosch
Bore Diameter 2
18 mm
Net weight
7.4 kg
Always compare old and new part
in particular OE No.
Shipping details
Weight
7.897 Kg
Customs Code
851150
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | A0439, A0564S |
|---|---|
| AUTOELECTRO | AEK3568 |
| BOSCH | 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 0986048400 |
| BV PSH | 815.532.180.010, 815.532.180.014, 815.532.180.210, 815.532.180.280 |
| CASCO | CAL10449AS, CAL10449GS |
| DELCO REMY | DRA0871 |
| DRI | 2381591802 |
| ELSTOCK | 28-6678 |
| EUROTEC | 12090425 |
| FRIESEN | 9090906 |
| HOLGER CRISTIANSEN | 115412 |
| MAGNETI MARELLI | MQA2001 |
| NK | 4848003 |
| PowerMax | 89215808 |
| RE-EX | 501-03168 |
| TMI | AL03168 |
| VOLVO | 30659131, 30659136, 31285628, 31419556, 36001341, 36012619 |
