Lucas

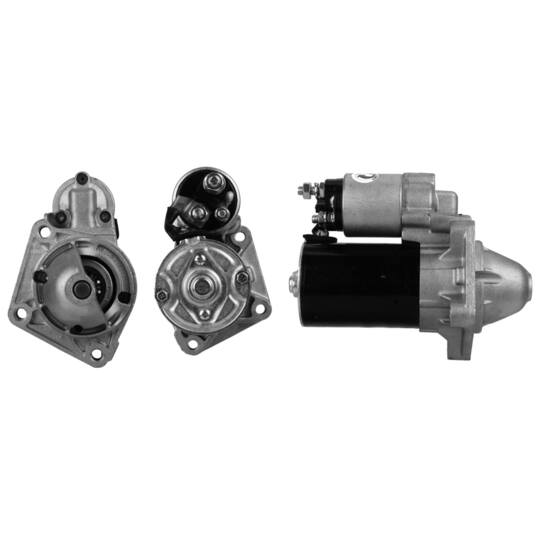

LRS01700 Starter
SKU / part number
Lucas LRS01700 Starter. Part no. LRS01700. Check specifications, vehicle fitment and references below.
Specifications
Rated Power
1.1 kW
Voltage
12 V
Flange Diameter
76 mm
Number of Teeth
10
Rotation Direction
Clockwise rotation
Clamp
M8
Clamp
Pin "50" M6
Number of mounting bores
3
Number of threaded holes
3
Net weight
2.7 kg
Shipping details
Weight
2.987 Kg
Customs Code
851140
Country of Origin
Denmark
Cross-Reference Numbers
| AS-PL | S0185, S0499 |
|---|---|
| ATL Autotechnik | A20900 |
| AUTOELECTRO | AEU1289 |
| BOM-Prestolite | S1347B |
| BOSCH | 0001107410, 0001107418, 0001107501, 0001107502, 0986020900 |
| BV PSH | 590.534.103.000, 590.534.103.010, 590.534.103.260, 590.534.103.280, 590.534.103.390 |
| CASCO | CST10404AS, CST10404GS, CST10404RS |
| CEVAM | 3120 |
| DELCO REMY | DRT0900, RAS41011 |
| DENSO | 63721289010, DSN3002 |
| DRI | 319056102 |
| ELSTOCK | 25-3250 |
| ERA | 220411, 220411A |
| EUROTEC | 11020900 |
| FORD | 1309581, 1564732, 1871851, 2S6U-11000-DA, 2S6U-11000-DB, 2S6U-11000-DC, RE2S6U-11000-DC |
| FRIESEN | 8080110 |
| HC-Cargo | 114162 |
| HELLA | 8EA012527-501, 8EA738132-001 |
| HOLGER CRISTIANSEN | CS1289 |
| JP GROUP | 1590301000 |
| LUCAS ELECTRICAL | LRS1700 |
| MAGNETI MARELLI | 063721289010, 944280801100, MQS1289 |
| NK | 4721041 |
| PININFARINA | 94114DB |
| PowerMax | 8212761, 88212761 |
| QUINTON HAZELL | QRS1288 |
| QX COMPONENTS | QS3101 |
| RE-EX | 502-01315 |
| SOVEREIGN | SS219 |
| TMI | ST01315 |
| VALEO | 201050, 438421, 458447 |
| WAI | 32708N, 32708R |
