Mahle

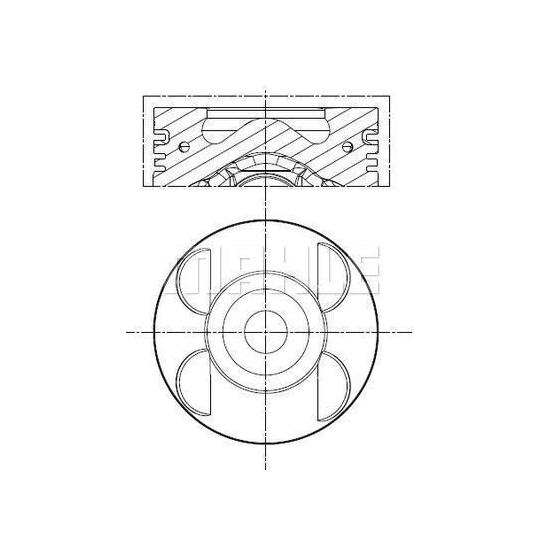

001 PI 00105 000 Piston
SKU / part number
Mahle 001 PI 00105 000 Piston. Part no. 001-PI-00105-000. Check specifications, vehicle fitment and references below.
Specifications
Length
72.3 | mm
Cylinder Bore
88.0 mm
Compression Height
42.3 mm
Bolt Length
70 mm
Bolt Head Diameter
30 mm
Recess Depth 1
14.1 mm
Recess Diameter
46 mm
Valve Pocket Depth 1
2.03 mm
Valve Pocket Depth 2
1.78 mm
Machined
with cut-out for oil jet
Surface
Phosphated and graphite-coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
10.2 mm
Production Number
88 L 132
Component Number
1. R2.5 IF CrK
Component Number
2. M2.0 IFU Cr
Component Number
3. DSF 2.0 Cr
Net Weight
1000 g
Packaging height
12.80 cm
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
1.065 Kg
Customs Code
840999
Country of Origin
China
OE Numbers
| MERCEDES-BENZ | 646 030 04 17, 646 030 08 17, A646 030 04 17, A646 030 08 17 |
|---|
Cross-Reference Numbers
| KOLBENSCHMIDT | 41 275 600 |
|---|---|
| MERCEDES-BENZ | 646 030 04 17, 646 030 08 17, A646 030 04 17, A646 030 08 17 |
| NÜRAL | 87 428700 00, 87 72565, 87 826500 22 |
