Mahle

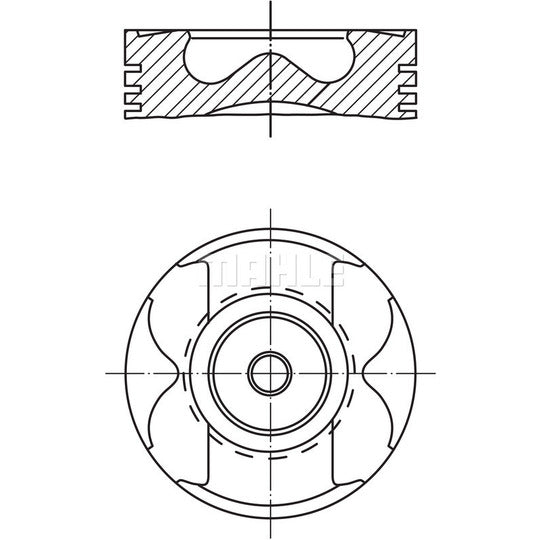

004 59 00 Piston
SKU / part number
Mahle 004 59 00 Piston. Part no. 004-59-00. Check specifications, vehicle fitment and references below.
Specifications
Length
68.3 | mm
Standard Size
STD
Cylinder Bore
88.0 mm
Compression Height
42.3 mm
Bolt Length
70.0 mm
Bolt Head Diameter
30.0 mm
Recess Depth 1
14.1 mm
Recess Diameter
46.0 mm
Valve Pocket Depth 1
2.0 mm
Valve Pocket Depth 2
1.8 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
10.2 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
88 L 80
Component Number
1. R2.5 IF CrK
Component Number
2. M 2.0 IF
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
895 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
1.038 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| KOLBENSCHMIDT | 97 48260 0 |
|---|---|
| MERCEDES-BENZ | 611 030 10 17, 646 030 01 17, 646 030 09 17, 646 030 10 17, 647 030 00 17, 647 030 01 17, A611 030 10 17, A646 030 01 17, A646 030 09 17, A646 030 10 17, A647 030 00 17, A647 030 01 17 |
| NÜRAL | 87 136400 00, 87 72532, 87 877500 02 |
