Mahle

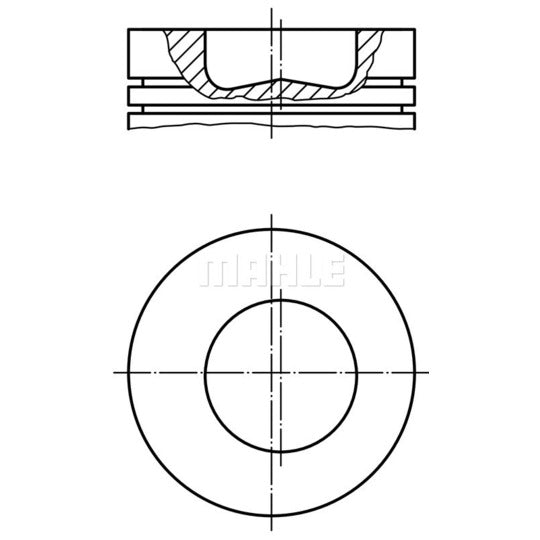

007 PI 00110 000 Piston
SKU / part number
Mahle 007 PI 00110 000 Piston. Part no. 007-PI-00110-000. Check specifications, vehicle fitment and references below.
Specifications
Length
117.1 | mm
Cylinder Bore
115.0 mm
Compression Height
72.1 mm
Bolt Length
95.5 mm
Bolt Head Diameter
46 mm
Recess Depth 1
29.0 mm
Recess Diameter
68.66 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
8.6 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
115 L 108
Piston Clearance
0.100 mm
Component Number
1. T 3.0 Crk P
Component Number
2. M2.5 IWU Cr
Component Number
3. DSF 4.0 Cr
Packaging length
13.2 cm
Packaging width
13.20 cm
Packaging height
19.00 cm
Net Weight
2575 g
Shipping details
Weight
2.82 Kg
Customs Code
840999
Country of Origin
Turkey
OE Numbers
| FIAT | 2995638, 504027699 |
|---|---|
| IVECO | 00000002996838, 2996838 |
Cross-Reference Numbers
| FIAT | 2995638, 504027699 |
|---|---|
| IVECO | 00000002996838, 2996838 |
| KOLBENSCHMIDT | 40 646 600 |
