Mahle

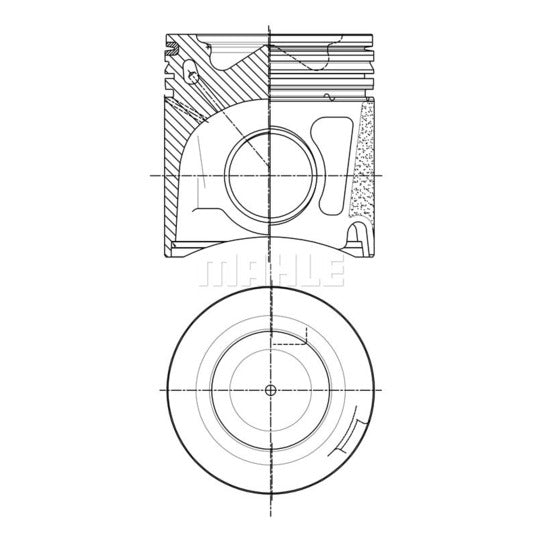

007 PI 00150 000 Piston
SKU / part number
Mahle 007 PI 00150 000 Piston. Part no. 007-PI-00150-000. Check specifications, vehicle fitment and references below.
Specifications
Length
84 | mm
Cylinder Bore
88 mm
Compression Height
57 mm
Bolt Length
67 mm
Bolt Head Diameter
31 mm
Recess Depth 1
14.3 mm
Recess Diameter
61.6 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
8 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
88 L 115
Piston Clearance
0.07 mm
Component Number
1. ET 2.5 CrK
Component Number
2. M 2.00
Component Number
3. DSF 2.5 Cr
Packaging height
12.80 cm
Packaging length
9.5 cm
Packaging width
9.50 cm
Net Weight
998 g
Shipping details
Weight
0.957 Kg
Customs Code
840999
Country of Origin
Germany
OE Numbers
| FIAT | 504382960, 5801492242 |
|---|---|
| IVECO | 00000500054823, 500054823, 500086169 |
Cross-Reference Numbers
| FIAT | 504382960, 5801492242 |
|---|---|
| IVECO | 00000500054823, 500054823, 500086169 |
| KOLBENSCHMIDT | 41 707 600 |
| NÜRAL | 87 450600 00, 87 70679, 87 79954, 87 844900 02, 87 844900 32 |
