Mahle

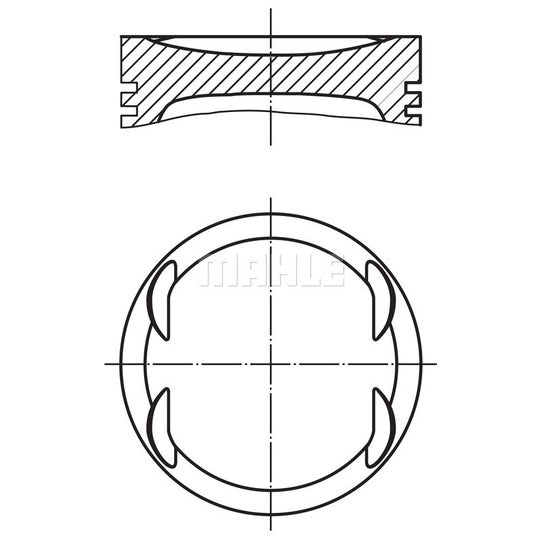

007 PI 00153 000 Piston
SKU / part number
Mahle 007 PI 00153 000 Piston. Part no. 007-PI-00153-000. Check specifications, vehicle fitment and references below.
Specifications
Length
49.8 | mm
Cylinder Bore
72.0 mm
Compression Height
26.8 mm
Bolt Length
53 mm
Bolt Head Diameter
18 mm
Recess Depth 1
8 mm
Recess Diameter
60.5 mm
Valve Pocket Depth 1
1.6 mm
Valve Pocket Depth 2
2.4 mm
Surface
Coated
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
5.7 mm
Production Number
72 L 57
Piston Clearance
0.03 mm
Component Number
1. R 1.2 Crk P
Component Number
2. NM 1.2
Component Number
3. DSF 2.0 Cr
Net Weight
292 g
Packaging length
8.5 cm
Packaging width
8.50 cm
Packaging height
8.60 cm
Shipping details
Weight
0.328 Kg
Customs Code
840999
Country of Origin
Germany
OE Numbers
| FIAT | 55210543, 55210592, 55210593 |
|---|
Cross-Reference Numbers
| FIAT | 55210543, 55210592, 55210593 |
|---|---|
| NÜRAL | 87 70681, 87 844600 02 |
