Mahle

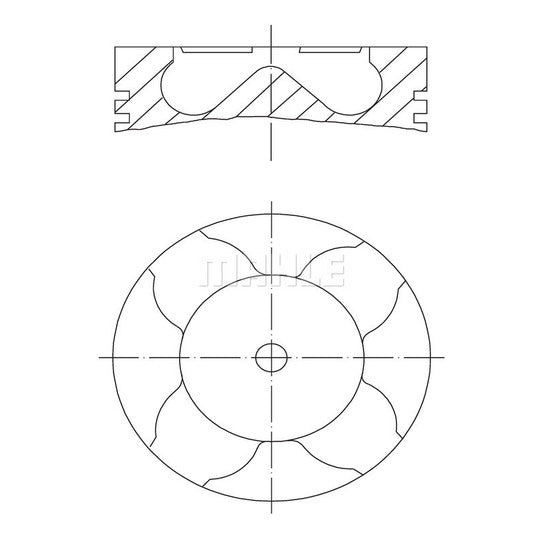

012 07 01 Piston
SKU / part number
Mahle 012 07 01 Piston. Part no. 012-07-01. Check specifications, vehicle fitment and references below.
Specifications
Length
70.8 | mm
Cylinder Bore
84.5 mm
Compression Height
45.8 mm
Bolt Length
68.0 mm
Bolt Head Diameter
29.0 mm
Recess Depth 1
14.9 mm
Recess Diameter
41.0 mm
Valve Pocket Depth 1
1.0 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
11 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
84 L 42
Piston Clearance
0.07 mm
Component Number
1. R 2.0 CrK
Component Number
2. M 1.75
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Packaging length
9.5 cm
Packaging width
9.50 cm
Net Weight
915 g
Shipping details
Weight
0.959 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| KOLBENSCHMIDT | 94 83471 0 |
|---|---|
| NÜRAL | 87 102807 10 |
| OPEL | 0624148, 244 049 33, 244 049 34, 244 049 35, 244 049 36, 244 049 43, 244 049 44, 244 049 45, 244 049 46 |
