Mahle

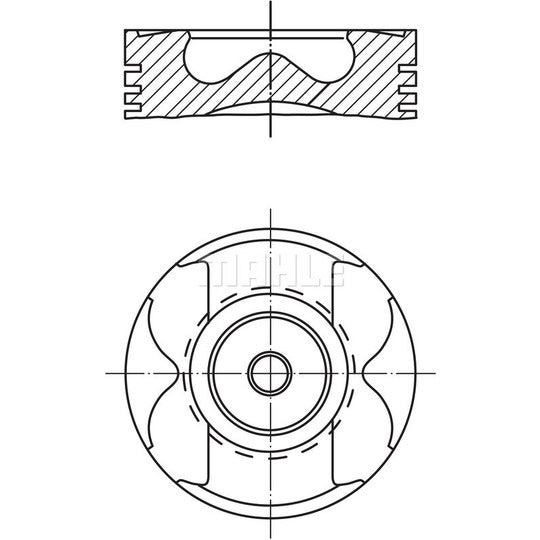

022 26 01 Piston
SKU / part number
Mahle 022 26 01 Piston. Part no. 022-26-01. Check specifications, vehicle fitment and references below.
Specifications
Length
83.1 | mm
Cylinder Bore
89.5 mm
Compression Height
53.03 mm
Bolt Length
65.0 mm
Bolt Head Diameter
31.0 mm
Recess Depth 1
17.8 mm
Recess Diameter
43.2 mm
Valve Pocket Depth 1
2.12 mm
Valve Pocket Depth 2
1.69 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
12.4 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
89 L 107
Piston Clearance
0.1 mm
Component Number
1. R2.5 IF Mo P
Component Number
2. M 1.75 IFU
Component Number
3. DSF 2.5 Cr
Net Weight
1072 g
Packaging height
12.80 cm
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
1.171 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| KOLBENSCHMIDT | 40 079 620 |
|---|---|
| NÜRAL | 87 728280 50, 87 887307 02, 87-137507-10 |
