Mahle

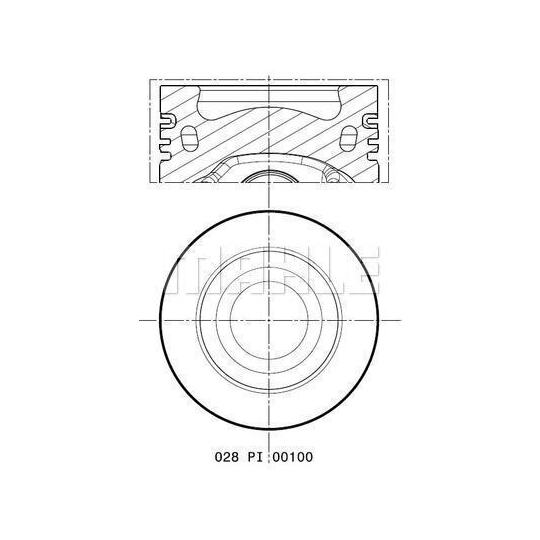

028 PI 00100 002 Piston
SKU / part number
Mahle 028 PI 00100 002 Piston. Part no. 028-PI-00100-002. Check specifications, vehicle fitment and references below.
Specifications
Length
68.8 | mm
Cylinder Bore
81.5 mm
Compression Height
45.8 mm
Bolt Length
66 mm
Bolt Head Diameter
26 mm
Recess Depth 1
12.7 mm
Recess Diameter
50.9 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
12.1 mm
Production Number
81 L 156
Piston Clearance
0.07 mm
Component Number
1. R 1.75 CrK
Component Number
2. M 2.0 IFU P
Component Number
3. DSF 3.0 Cr
Net Weight
796 g
Packaging length
8.5 cm
Packaging width
8.50 cm
Packaging height
8.60 cm
Shipping details
Weight
0.929 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| NÜRAL | 87 432307 00 |
|---|
