Mahle

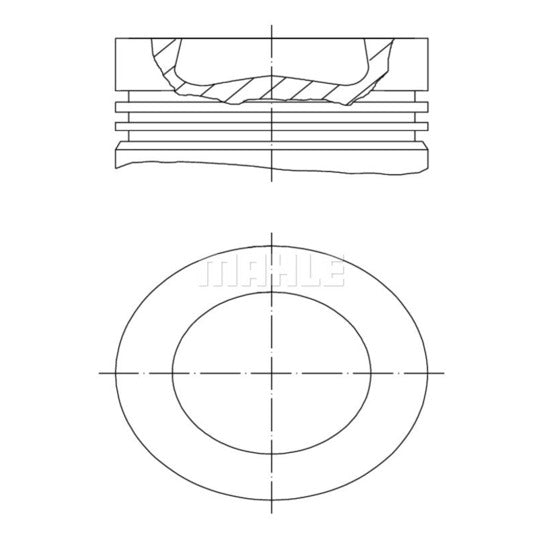

028 PI 00121 000 Piston
SKU / part number
Mahle 028 PI 00121 000 Piston. Part no. 028-PI-00121-000. Check specifications, vehicle fitment and references below.
Specifications
Length
67.8 | mm
Cylinder Bore
79.51 mm
Compression Height
45.3 mm
Bolt Length
66 mm
Bolt Head Diameter
26 mm
Recess Depth 1
10.7 mm
Recess Diameter
49 mm
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
12 mm
Production Number
79 L 98
Piston Clearance
0.075 mm
Component Number
1. R 1.75 CrK
Component Number
2. M 2.0 IFU
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
732 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.832 Kg
Customs Code
840999
Country of Origin
Poland
Cross-Reference Numbers
| AUDI | 03L107065AE, 03L107065H, 03L107065J |
|---|---|
| CUPRA | 03L107065AE, 03L107065H, 03L107065J |
| KOLBENSCHMIDT | 41 095 600 |
| NÜRAL | 87 432900 00 |
| VW | 03L 107 065 H, 03L 107 065 J, 03L107065AE |
