Mahle

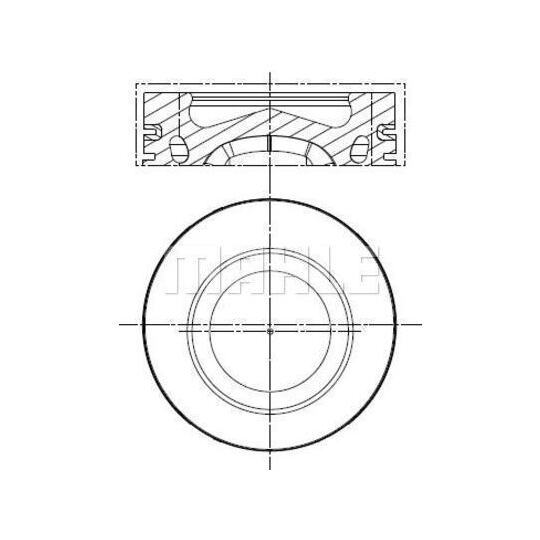

028 PI 00140 000 Piston
SKU / part number
Mahle 028 PI 00140 000 Piston. Part no. 028-PI-00140-000. Check specifications, vehicle fitment and references below.
Specifications
Length
68.3 | mm
Cylinder Bore
79.5 mm
Compression Height
45.3 mm
Bolt Length
66 mm
Bolt Head Diameter
26 mm
Recess Depth 1
11 mm
Recess Diameter
49 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
11.5 mm
Production Number
79 L 160
Component Number
1. R 1.75 CrK
Component Number
2. M2.00 IFU P
Component Number
3. DSF 2.00 Cr
Net Weight
738 g
Packaging length
8.5 cm
Packaging width
8.50 cm
Packaging height
8.60 cm
Shipping details
Weight
0.773 Kg
Customs Code
840999
Country of Origin
China
OE Numbers
| AUDI | 04L107065D |
|---|---|
| CUPRA | 04L107065D |
| VW | 04L 107 065 D |
Cross-Reference Numbers
| AUDI | 04L107065D |
|---|---|
| CUPRA | 04L107065D |
| KOLBENSCHMIDT | 41 271 600 |
| NÜRAL | 87 444100 00, 87 849800 02, 87-72502 |
| VW | 04L 107 065 D |
