Mahle

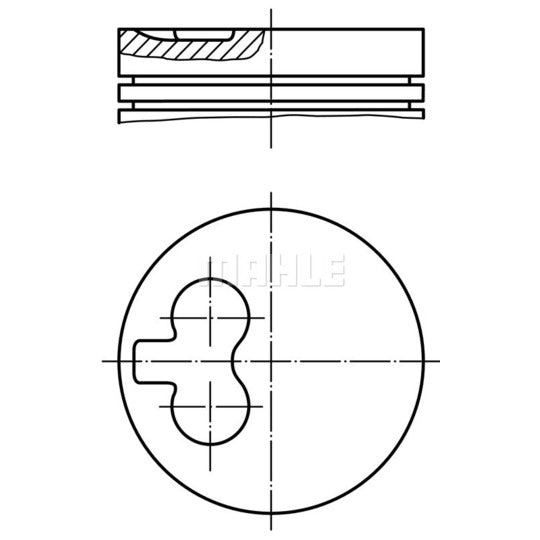

029 82 00 Piston
SKU / part number
Mahle 029 82 00 Piston. Part no. 029-82-00. Check specifications, vehicle fitment and references below.
Specifications
Length
65.7 | mm
Standard Size
STD
Cylinder Bore
79.51 mm
Compression Height
39.65 mm
Bolt Length
64.0 mm
Bolt Head Diameter
24.0 mm
Recess Depth 1
1.9 mm
Recess Diameter
26.5 mm
Machined
with cut-out for oil jet
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
11.1 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
79 V 97
Piston Clearance
0.03 mm
Component Number
1. R 1.75 Cr P
Component Number
2.M2.0 IFU Cr P
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
660 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.72 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 028107065CF, 028107065F, 028107101H, 28107065CF |
|---|---|
| CUPRA | 028107065CF, 028107065F, 028107101H, 28107065CF |
| KOLBENSCHMIDT | 90 52760 0, 91 386 600 |
| NÜRAL | 07 945121 20 7951, 87 72191, 87 990100 22, 87 990100 40 |
| VW | 028 107 065 CF, 028 107 065 F, 028 107 101 H, 28107065CF |
