Mahle

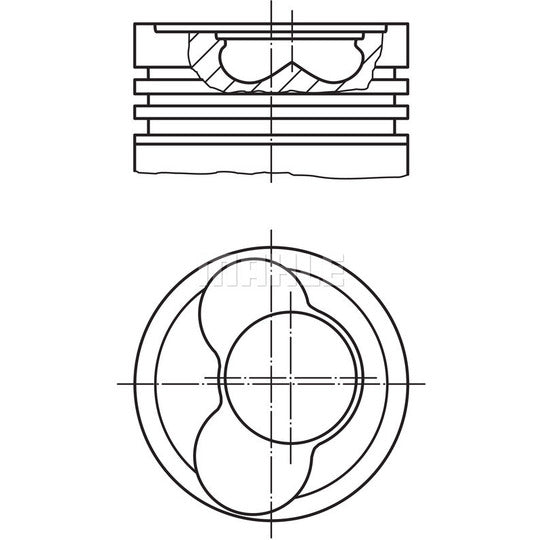

030 65 00 Piston
SKU / part number
Mahle 030 65 00 Piston. Part no. 030-65-00. Check specifications, vehicle fitment and references below.
Specifications
Length
69.8 | mm
Standard Size
STD
Fitting Position
to cylinder 1
Fitting Position
to cylinder 2
Fitting Position
for cylinder 1-2
Cylinder Bore
79.51 mm
Compression Height
45.8 mm
Bolt Length
66.0 mm
Bolt Head Diameter
26.0 mm
Recess Depth 1
17.75 mm
Recess Diameter
38.0 mm
Valve Pocket Depth 1
1.15 mm
Valve Pocket Depth 2
1.15 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Production Number
79 L 59
Component Number
1. R 1.75 CrK
Component Number
2. M 2.0 IFU
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
825 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.86 Kg
Customs Code
840999
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 038107065CN, 038107065CR, 038107065DQ, 038107065EA, 038107065EC, 038107065EQ, 038107065FA, 038107065FF, 038107065FG, 038107065FJ, 038107065GA, 038107065GC, 038107065GG, 038107065KE, 038107065KG, 038107101FC, 38107065EA, 38107065FJ |
|---|---|
| CUPRA | 038107065CN, 038107065CR, 038107065DQ, 038107065EA, 038107065EC, 038107065EQ, 038107065FA, 038107065FF, 038107065FG, 038107065FJ, 038107065GA, 038107065GC, 038107065GG, 038107065KE, 038107065KG, 038107101FC, 38107065EA, 38107065FJ |
| KOLBENSCHMIDT | 99 85060 0 |
| NÜRAL | 87 114900 60 |
| VW | 038 107 065 C N, 038 107 065 C R, 038 107 065 D Q, 038 107 065 E A, 038 107 065 E C, 038 107 065 E Q, 038 107 065 F A, 038 107 065 F G, 038 107 065 F J, 038 107 065 FF, 038 107 065 G A, 038 107 065 G C, 038 107 065 G G, 038 107 065 K E, 038 107 065 KG, 038 107 101 F C, 38107065EA, 38107065FJ |
