Mahle

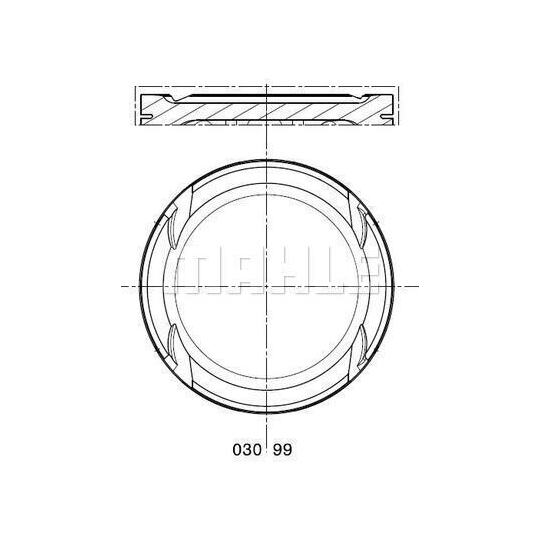

030 99 00 Piston
SKU / part number
Mahle 030 99 00 Piston. Part no. 030-99-00. Check specifications, vehicle fitment and references below.
Specifications
Length
50.3 | mm
Cylinder Bore
76.51 mm
Compression Height
29.27 mm
Bolt Length
54 mm
Bolt Head Diameter
17 mm
Recess Depth 1
2.6 mm
Recess Diameter
62.1 mm
Valve Pocket Depth 1
2.2 mm
Valve Pocket Depth 2
1.4 mm
Surface
Coated
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
6 mm
Production Number
76 L 110
Piston Clearance
0.03 mm
Component Number
1. R 1.2 N
Component Number
2. M 1.5
Component Number
3. 3S 2.5 Cr
Packaging height
12.80 cm
Net Weight
351 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.404 Kg
Customs Code
840991
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 036107065AH, 036107065AP, 036107065BS, 36107065AP |
|---|---|
| CUPRA | 036107065AH, 036107065AP, 036107065BS, 36107065AP |
| KOLBENSCHMIDT | 94 95860 0, 99 563 601 |
| NÜRAL | 87 116100 02, 87 72169 |
| VW | 036 107 065 A H, 036 107 065 A P, 036 107 065 B S, 36107065AP |
| YENMAK | 31 04315 000 |
