Mahle

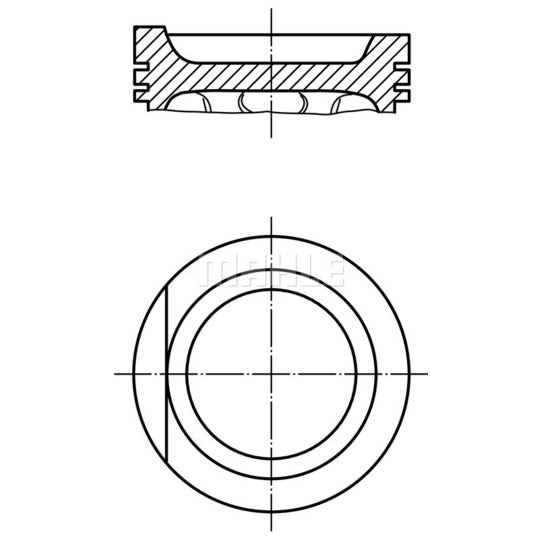

034 75 00 Stempel
SKU / part number
Mahle 034 75 00 Stempel. Part no. 034-75-00. Check specifications, vehicle fitment and references below.
Specifications
Length
62.5 | mm
Standard Size
STD
Cylinder Bore
81.01 mm
Compression Height
32.2 mm
Bolt Length
57.0 mm
Bolt Head Diameter
20.0 mm
Recess Depth 1
4.4 mm
Recess Diameter
56 mm
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
6.4 mm
Production Number
81 V 53
Piston Clearance
0.03 mm
Component Number
1. M 1.5 Mo P
Component Number
2. NM 1.75
Component Number
3. DSF 3.0 Cr
Packaging height
12.80 cm
Net Weight
453 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Kryssreferansenummer
| AE | PI 0651108 |
|---|---|
| AUDI | 026107065P, 026107065R, 026107103P, 26107065P |
| CUPRA | 026107065P, 026107065R, 026107103P, 26107065P |
| KOLBENSCHMIDT | 93 92860, 0 |
| NÜRAL | 08 130110, 20 8101, 08 130184, 30 8101, 87 109400, 50 |
| VW | 026 107, 065 P, 065 R, 103 P, 26107065P |
