Mahle

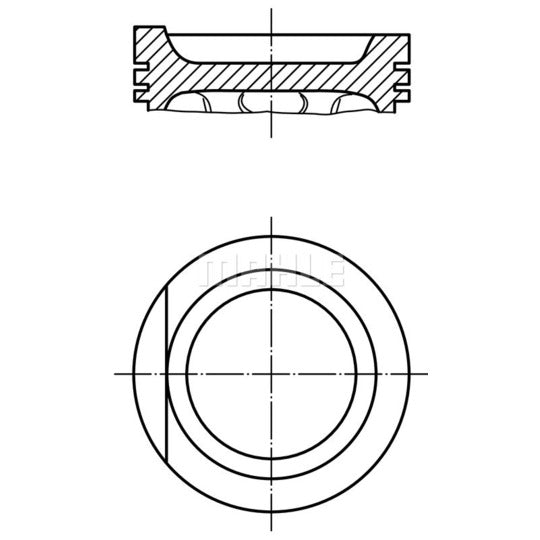

034 99 01 Piston
SKU / part number
Mahle 034 99 01 Piston. Part no. 034-99-01. Check specifications, vehicle fitment and references below.
Specifications
Length
51.8 | mm
Cylinder Bore
83.01 mm
Compression Height
30.9 mm
Bolt Length
56.0 mm
Bolt Head Diameter
21.0 mm
Recess Depth 1
5.0 mm
Recess Diameter
64.0 mm
Surface
Coated
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
6.5 mm
Production Number
82 L 56
Piston Clearance
0.045 mm
Component Number
1. M 1.2 Mo
Component Number
2. M 1.5 IW
Component Number
3. DSF 2.0 Cr
Packaging height
12.80 cm
Net Weight
404 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.46 Kg
Customs Code
840991
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 048107081B |
|---|---|
| CUPRA | 048107081B |
| KOLBENSCHMIDT | 91 12862 0 |
| VW | 048 107 081 B |
